Voltage Scanner MODEL: 2 ALO- 20-323


Protection of 3 Phase devices against Over voltage, Under voltage,Single Phasing, Reverse Phasing & unbalance supply are one of the major issue in electrical systems. For safe running of 3-phase devices, special protections that keep a continuous watch on supply conditions are very essential. The major cause of maximum load burn-out is overloading which occurs due to unbalance supply, Single Phasing & Reverse Phasing conditions. Scanner detects such Conditions & protect the load from burn out. 'PROTON's Scanner' offer above protections along with 3 digit display showing R-Y,Y-B,BR voltages in scanning mode with precise accuracy. LOW/HIGH voltage tripping to ensure trouble free running of 3-phase Loads.

  • Technology: Micro controller based system
  • Output Supply Voltage range: 280-500VAC supply (3-Phase)
  • Contact Type: C/NO potential free Rating 5 A at 230 VAC
  • Contact Rating: 10 Amps. 230VAC
  • Frequency: 50Hz +/- 3%
  • Auxiliary supply: Built-in(Additional supply not required)
  • Unbalance Trip setting: 60V OFF….50V ON (Phase to Phase voltage)
  • Cutout: 92(W) X 92 (H)
  • Trip Time Delay : 50 m sec



  • Mounting: Door Mounting
  • Weight: 470 grams.
  • Dimension: 96(W) x 96(H) x 53(D)
  • Cutout: 92(L) mm x 92(W)mm

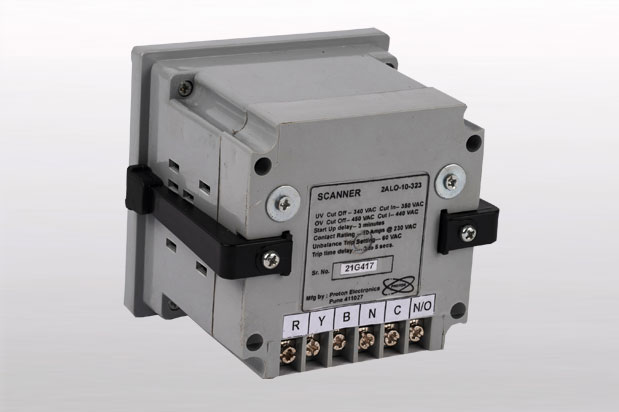

  • Connecting Terminals: Terminals are from backward

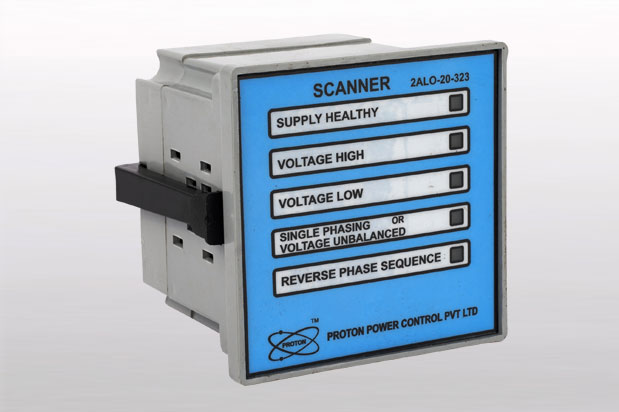

  • Indication:
    1) supply Healthy -green LED
    2) Voltage High -Red LED
    3) Voltage Low -Red LED
    4) Single phase or Voltage Unbalanced -Red LED
    5) Reverse phase, sequence -Red LED

  • N/A
