The TDS/Conductivity meter is used for measurement of conductivity of water and can control the plant operation through the set point controlled as programmed by the user.
- TDS /Conductivity Range :0-2000ppm
- Resolution :0.1ppm
- Auxiliary Power : 90 to 270V AC, 50 HZ
- Relay contact ratings : 10A/230V
- ENCLOSURE:
1] Mounting : Panel mounting.
2] Position : Panel.
3] Enclosure : 96(W)X96(L)X53(D)mm.
4] Cut out :92(L)mm X 92(W)mm.

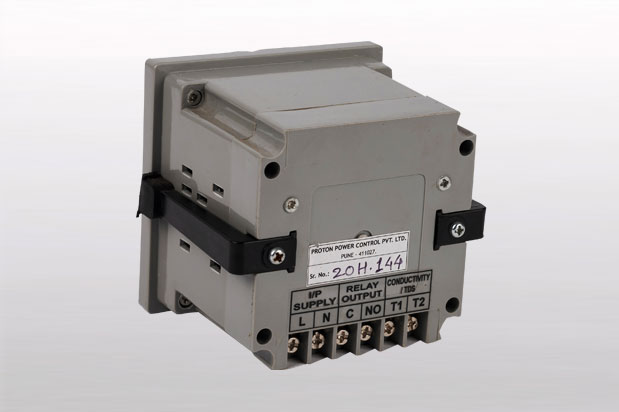

5] Terminal : Screw ON Terminals.
- KEYS:
- 1. FUN : This key is used to change the controller from RUN mode to FUNCTION mode for parameter setting
- 2. INC : Up scroll the parameter & parameter value.
- 3. DEC:Down scroll the parameter & parameter value and to Reset the Trip State.
- 1. Relay ON :Green LED Glow- Control Relay ON Not Glowing- Control Relay OFF
- 2. TDS :Red LED Glow- TDS Selected Not Glowing- TDS not Selected 3. Conductivity :CONDUCTIVITY LED Glow: Conductivity Selected TDS LED Glow: TDS Selected.
- Conductivity and TDS Measurement.
- Scrolling message indications
- Inbuilt 10A/230V relay potential free contact (no/ncselectable for high conductivity trip.
- Four digit 7 segment bright display
- User programmable through front keys.
- Good stability, high reliability.
- INTRODUCTION:
- The TDS/Conductivity meter is used for measurement of conductivity of water and can control the plant operation through the set point controlled as programmed by the user.
