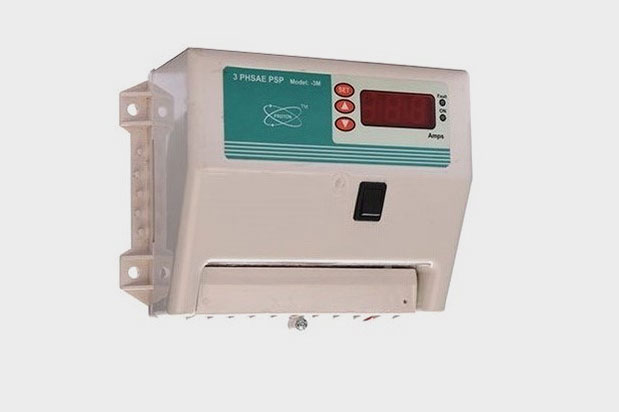

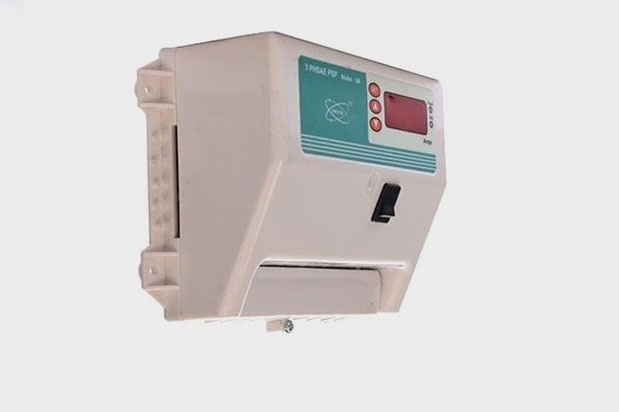

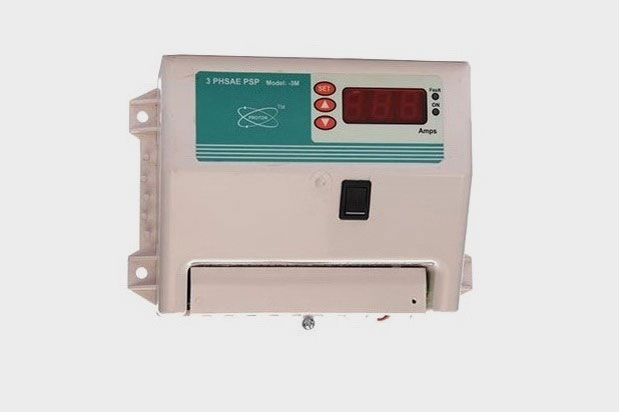

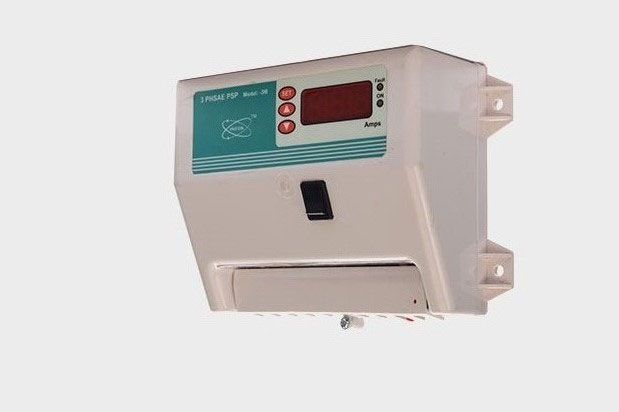

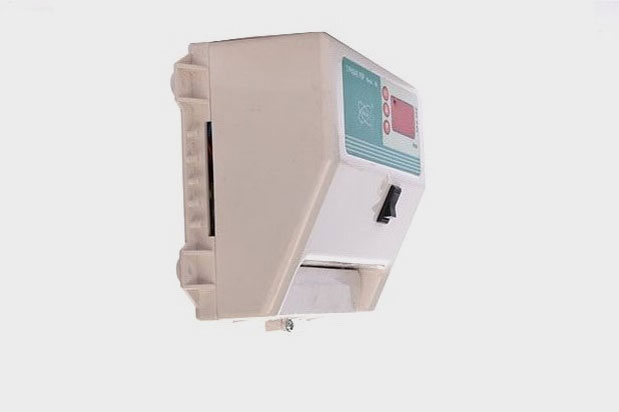

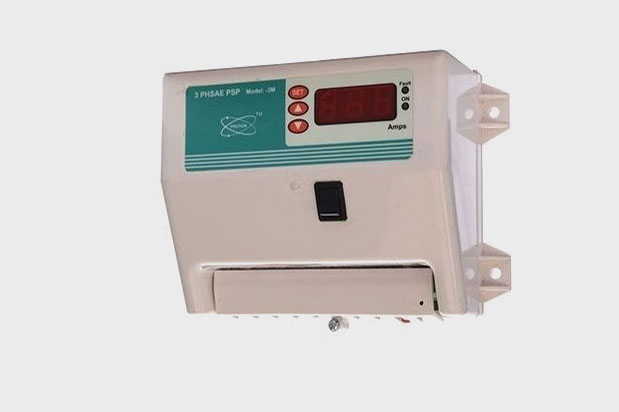

The dual pump starter panel is state of the art Micro Controller based. It measures Voltage and currents of both the pumps. It has user settable Over and Under Voltage protections. It provides for settable Overload, Under-load (Dry run) and phase unbalance protections as well. In addition phase reversal and single phase protections are also provided. It also provides for by-passing of certain protections if not desired.
- Nominal Input Current: 30 A
- Accuracy: Current:230VAC 10% , 50Hz. Display: Voltage, Currents of both the Motors, Fault Messages.
- Display Accuracy:Voltage : 0.25% ± 1 digits. Current : 0.25% rdg ± 1 digits.
- Resolution:Current: 0.1 A
- Voltage : 1 V
- Environmental:
1] Working Temp : 0 to 55° C
2] Storage Temp : 10 to 70° C
3] Relative humidity: 0 - 95% non-condensing
4] Warm up time : 10 Sec

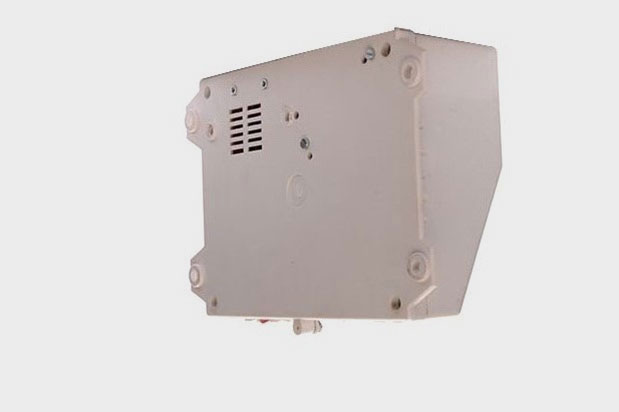

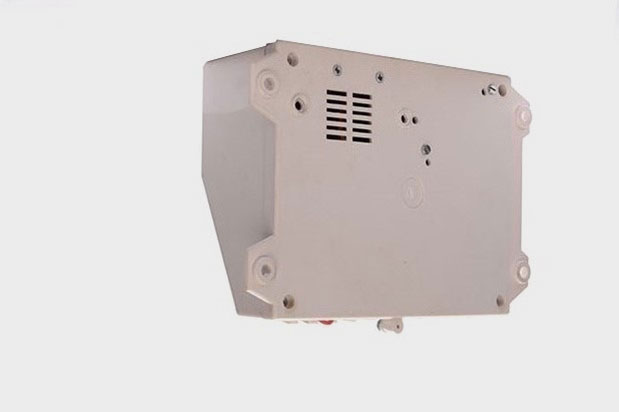

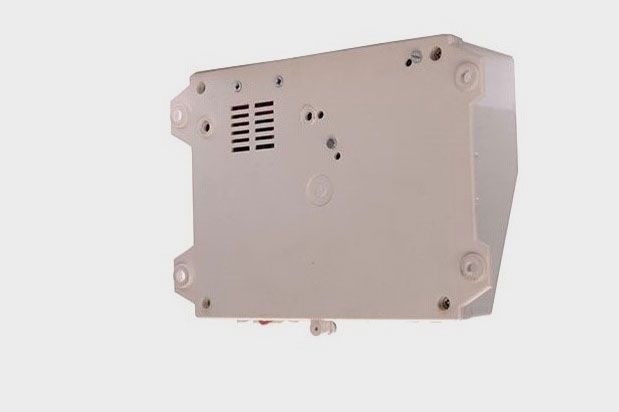

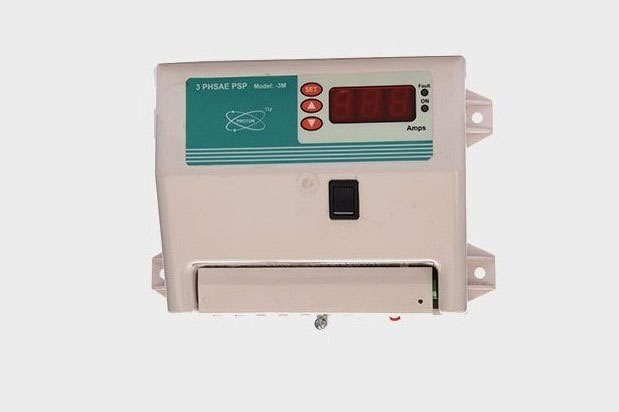

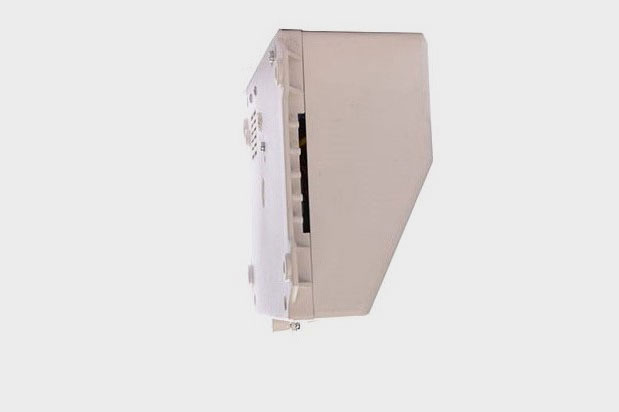

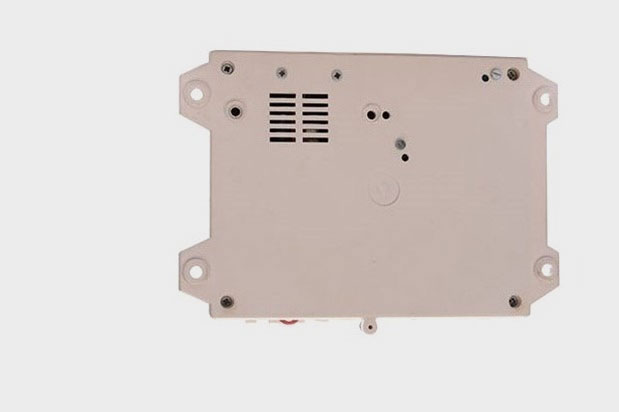

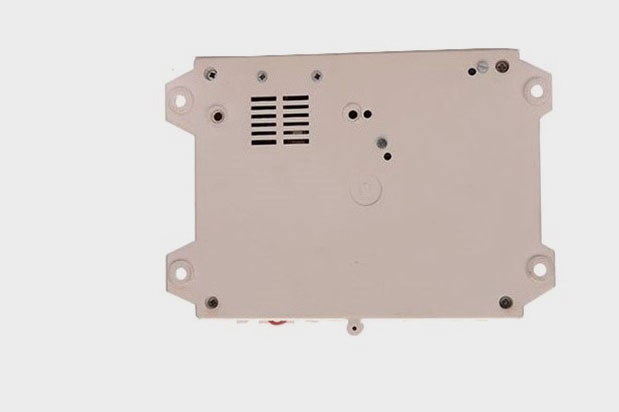

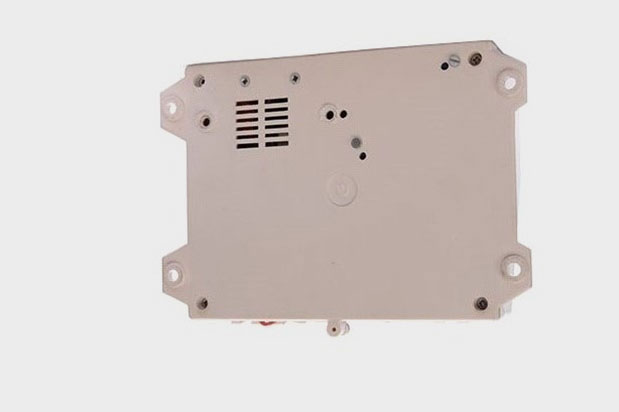

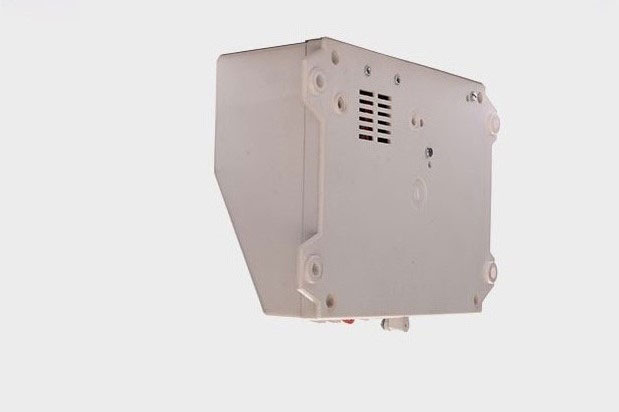

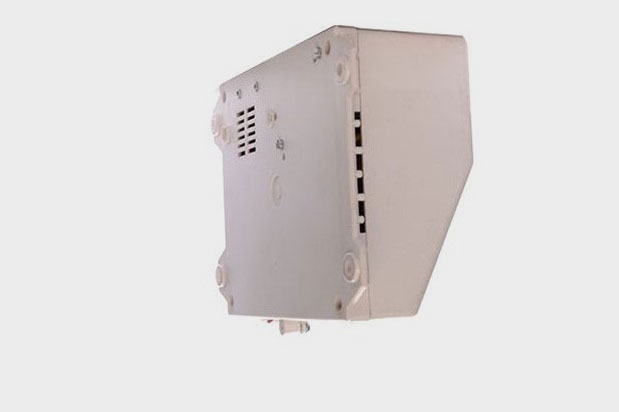

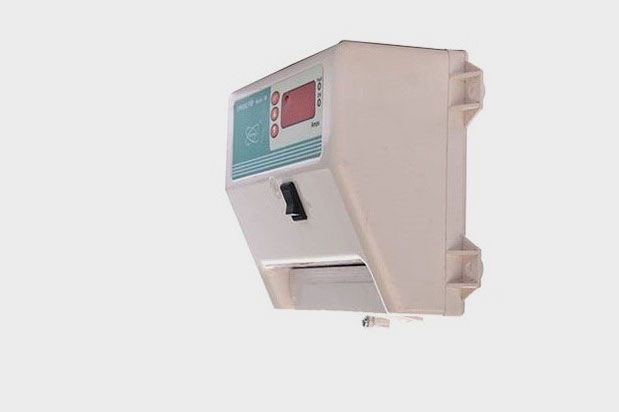

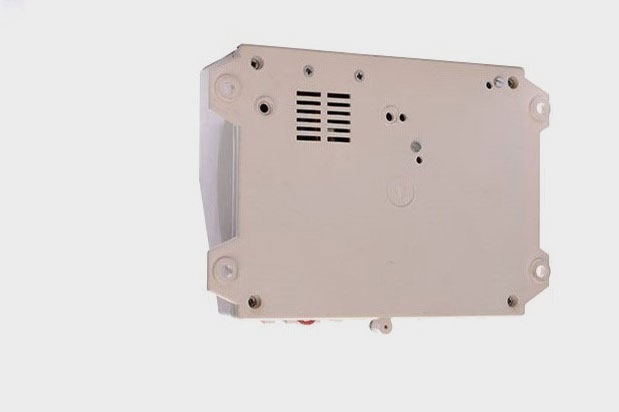

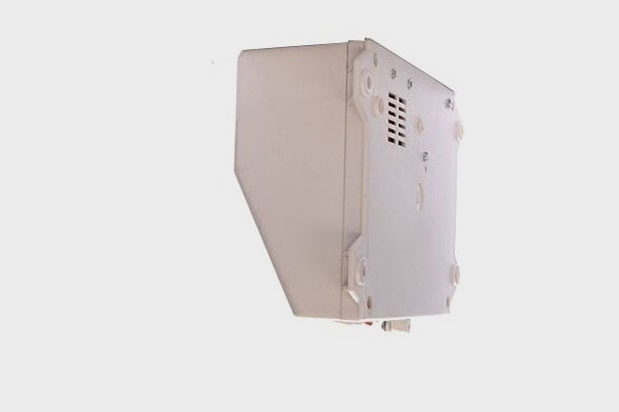

- Enclosure:
1] Mounting: Panel mounting. Cut out Size: 182(H) X 92(W)
2] Enclosure: 105 (W) X 200 (L) X 193 (H) mm.
3] Terminal: Screw ON Terminals.
- Terminal:
WORKING: In normal running mode, display shows
1. U—Voltage
2. C—Current
3. ‹Faults if any›
• UV—Under Voltage
• OV—Over Voltage
• OL—Over Load
• R-on AUTO—Relay on Auto
- Three digits 7 segment bright display for current.
- Calibration: using front keys.
- User Programmable.
- Password protected set parameters.
- Inbuilt 1 Phase 30 A Relay contact for load control.
- The Starter Panel measures line voltage, Current and provides protection against, Over load, Under Voltage and over Voltage.
