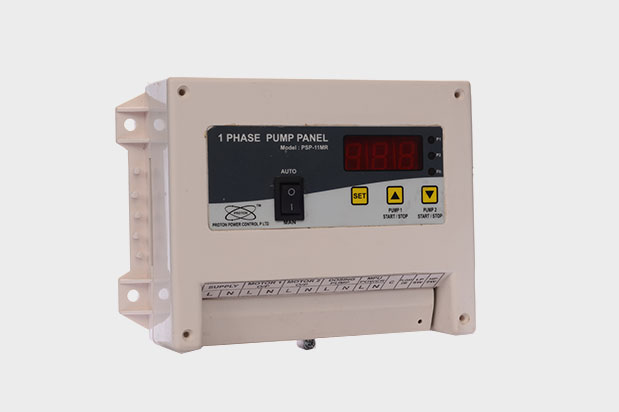

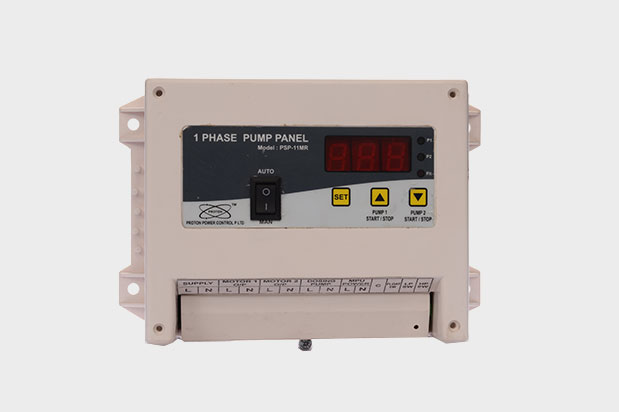

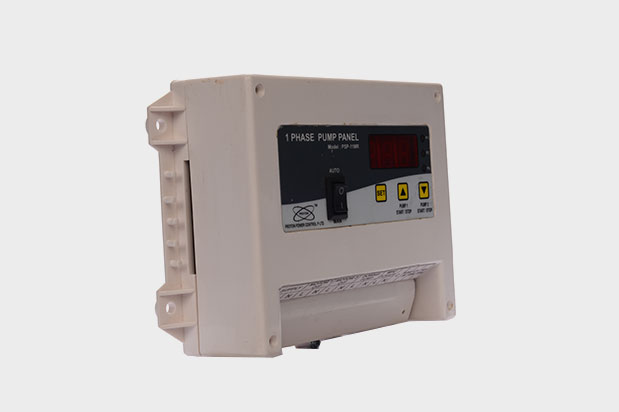

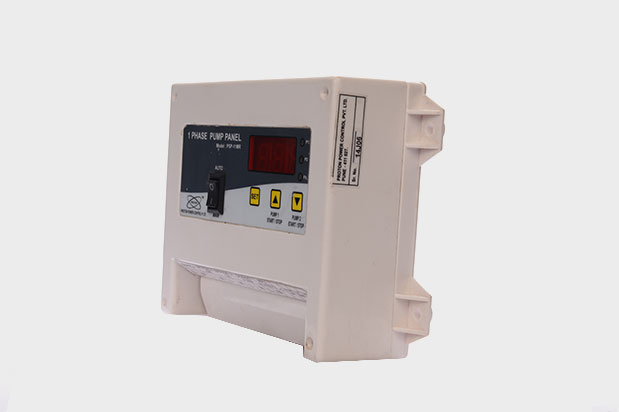

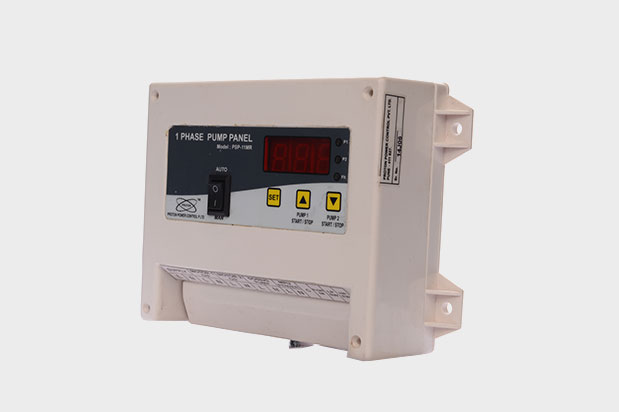

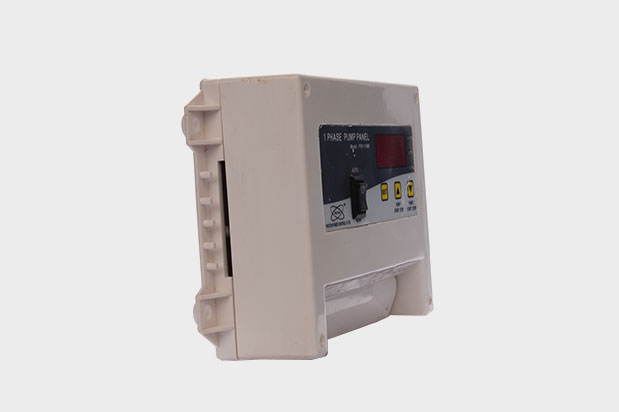

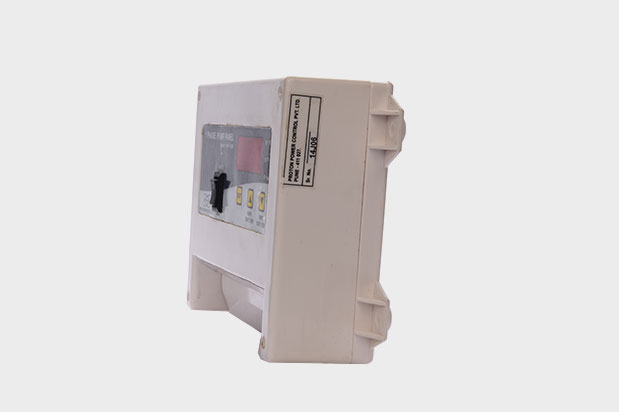

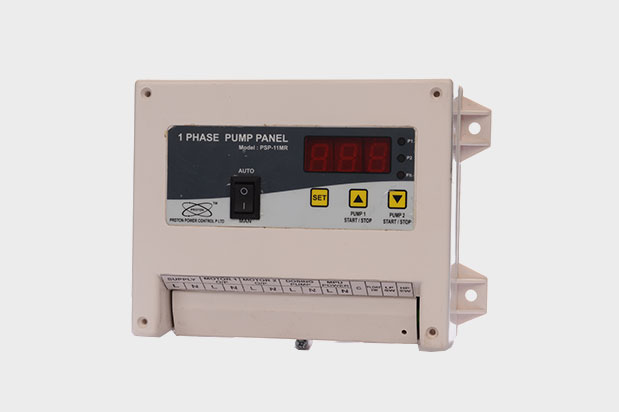

The RO Control cum Starter Panel is a Micro Controller based solid state compact unit. It measures Mains Voltage and Currents at Raw Water Pump (RWP) and High Pressure Pump (HPP). It provides Over and Under Voltage protection as well as Overload and Under Load (Dry Run) protection for both the pump motors. Voltage and Current protection settings are user settable with a password protection. Process interlocks like Low Pressure at HPP suction, High Pressure at HPP delivery and Product Tank Level High are pre-programmed for reliable operation of the plant. Controller also provides Flush Valve Solenoid and Dosing Pump power control. Low Pressure trip delay and Flush timings are settable. All the electrical trip delay timings are settable. Front panel LEDs indicate, Electrical Fault, Process Operation/ Alarm, Status of Pumps, Flush Valve and Manual Mode. At startup, power on delay is executed with blinking lamp test
- Auxillary Input Supply : 230VAC +/- 10 , 50Hz.
- Display Accuracy : Voltage: 0.25% ± 1 digits.
- Current : 0.25% rdg ± 1 digits.
- Pump Control Output: RWP , HPP 230VAC, 2hp, each.
- Environmental :
1] Operating Temp : 0 to 55º C
2] Storage Temp : 0 to 70º C
3] Relative humidity : 0 – 95 % non-Condensing
4] Warm up time : 10 Sec - Enclosure :

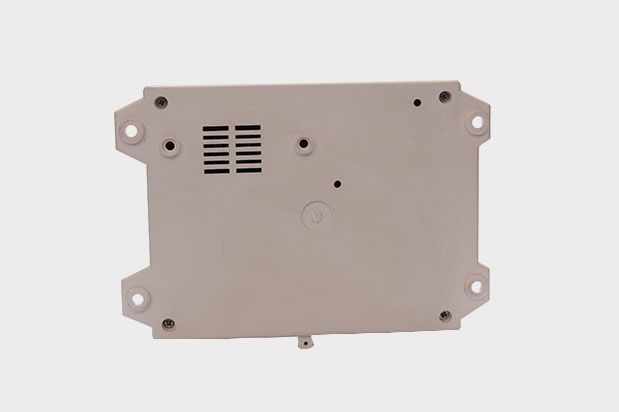

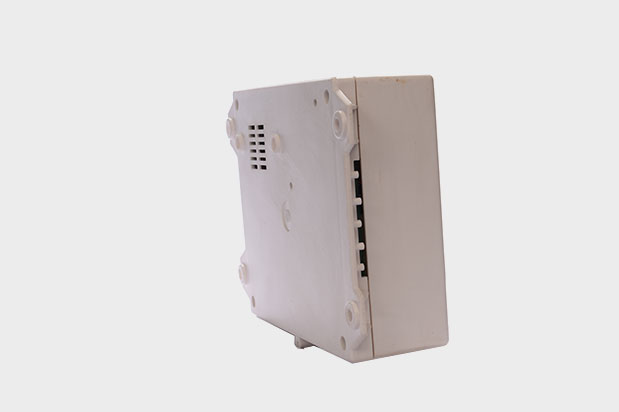

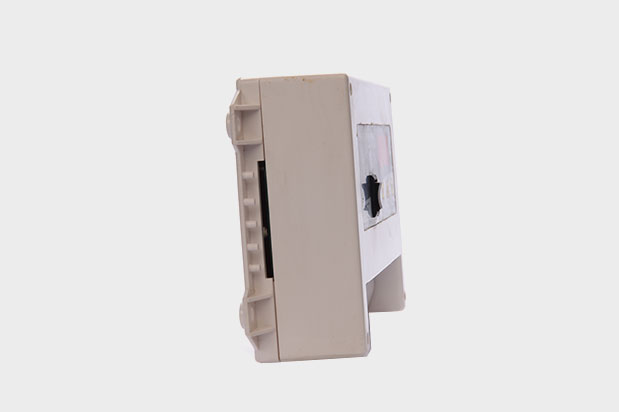

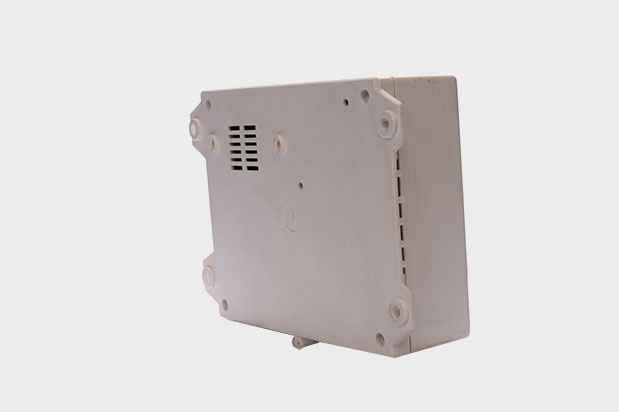

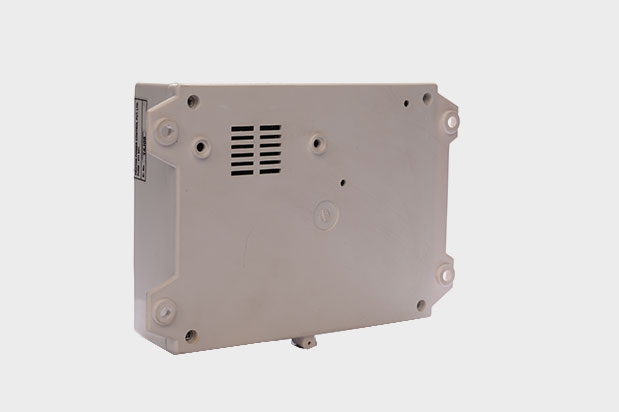

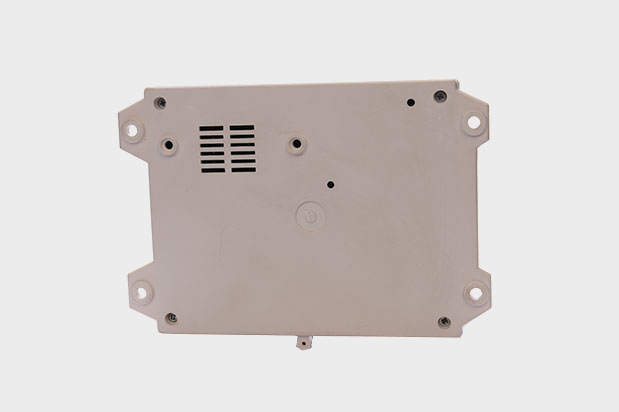

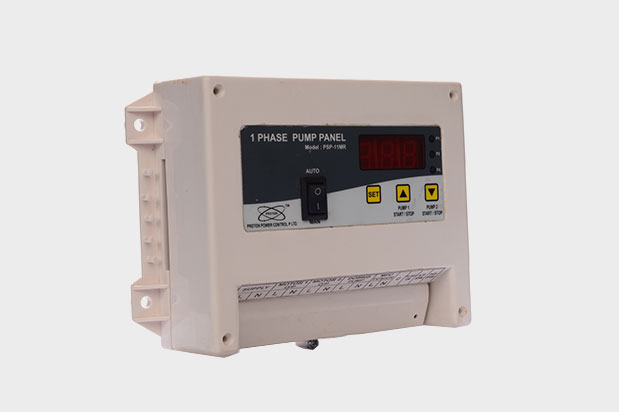

1] Mounting : Surface Mounting.
2] Enclosure : 105 (W) X 200 (L) X 193 (H) Dimensions in mm.
3] Terminal : Screw ON Terminals. - Display :
In normal running mode, display shows: - U -- Input Voltage --
- A1 -- Motor 1 Current (RWP)
- A2 -- Motor 2 Current (HPP)
- Following Faults Are Displayed:
- oV-Over voltage,
- uV-Under voltage,
- oL1-Overload1, (RWP)
- oL2-Overload2, (HPP)
- uL1-Under Load1, (RWP)
- uL2-Under Load2, (HPP)
- LP-Low Pressure,
- HP-High Pressure,
- Flt- Product Tank Full
- LED Indications :
- - RWP (ON-Steady, Blink-Elect Fault)
- - HPP (ON-Steady, Blink-Elect Fault)
- - ALARM (Blinks on Process Fault)
- - FAULT(Steady Glow- Elect /Process Fault, Blink- Trip Time Count Down)
- - MANUAL Mode (Steady)
- - FLUSH (ON-Steady`)
- The RO Control cum Starter Panel is a Micro Controller based solid state compact unit. It measures Mains Voltage and Currents at Raw Water Pump (RWP) and High Pressure Pump (HPP). It provides Over and Under Voltage protection as well as Overload and Under Load (Dry Run) protection for both the pump motors. Voltage and Current protection settings are user settable with a password protection. Process interlocks like Low Pressure at HPP suction, High Pressure at HPP delivery and Product Tank Level High are pre-programmed for reliable operation of the plant. Controller also provides Flush Valve Solenoid and Dosing Pump power control. Low Pressure trip delay and Flush timings are settable. All the electrical trip delay timings are settable.
- Front panel LEDs indicate, Electrical Fault, Process Operartion/ Alarm, Status of Pumps, Flush Valve and Manual Mode.
- At startup, power on delay is executed with blinking lamp test.
- Suitable for all Small RO plants.
- Three digit 7 segment bright display for current, voltage, faults and alarms.
- User Settings: Using front keys.
- Pre-programmed RO control logic.
- Password protected, user Programmable.
- Inbuilt 1 Phase 30 A Relay for Raw Water and High Pressure Pump Control.
- Message Display and LED Indications for faults/alarms.
- Auto/Manual Operation Mode.
