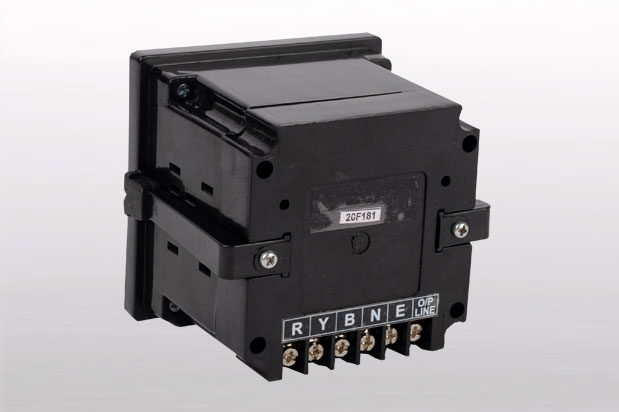

- Supply voltage :3 Phase 415 VAC, 50/60 Hz (R, Y, B & N) (No auxiliary supply)
- Output Contacts : L,N, Output Rating 30A at 250V AC

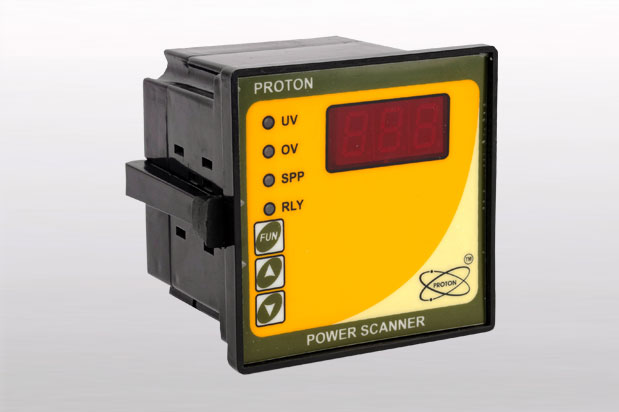

- Indications : FAULT (UB/SPP/REVP, UV, OV): RED LED, RELAY ON,: GREEN LED
- Keys :
- SET : SET key, Press to enter into SET Mode
- INC : Upward Arrow key, Press to increment the setpoint.
- DEC : Downward Arrow key, To Decrement the setpoint.
- Mounting : Door Mounting.
- Dimensions : 96(L) * 96(W) * 110(D), mm.
- Working :
If the Input supply is within the range of the fault limits then On Timer starts decrementing on display & after Set On Time over, Relay will be ON with RLY indication glowing.
If OV, UV, Spp/Reverse phasing/Unbalance occurs in the supply then mains Relay will be OFF.
Output contact is a 30A/250V Relay output with R phase rout through relay.
- Microcontroller based technology.
- Protection against under voltage, over voltage, Single Phasing & Reverse Phasing
- All the set points settable by keys.
- Trip Delay is settable
- Reverse Phasing Protection can be bypass through settings.
- Indications for under voltage, Over Voltage, SPP & Mains ON & DG Supply Available.
- Message Display for SPP, Reverse Phasing & Unbalance uV Faults.
