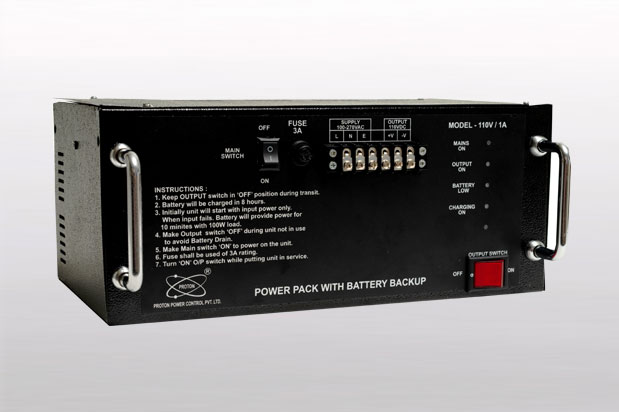

Power Pack with Battery Backup

Power Pack with Battery Backup,Battery Power Packs, Digital Panel Meters, Manufacturer, Supplier, Exporter, Proton Power Control, Pune, Maharashtra, India

110V / 1V
110V / 1V


  • Input Voltage : 90-270VAC/DC
  • Input Burden :At no load condition less than 50 watt during charging period
  • Output Voltage : O/P Specification
  • 24VDC, 4A
  • 30VDC, 3.3A
  • 48VDC, 2A
  • 110VDC, 1A
  • 220VDC, 0.5A
  • Output load : With Ac Input ON (Mains Mode)
  • Continuous Load : 100 Watt
  • Impulse Load : 450 W for 240 m Sec. (Impulse Load to occur in addition to continuous load with a gap of 15 sec.)
  • With Ac Input OFF (Back-Up Mode)
  • Continuous Load : 100Watt
  • Impulse Load : 450W for 240m Sec. (To occur in addition to continuous load with a gap of 1min. for total time of 10Min)
  • Battery Charging Period : 8Hrs.
  • Back-up Period : 15 Min at 100W load.
  • Complete protection from unhealthy condition.
  • protected against Short circuit, overvoltage & over load.
  • Suitable for all types of Breakers.
  • Switch mode power supply (SMPS) Technology.
  • Reliable Backup from Battery.
  • Various indications to indicate various faults and status.
