- Supply voltage : 3 Phase 415 VAC, 50 Hz (R, Y, B & N) (No auxiliary supply)
- Output Contacts : SPDT (C-N/O-N/C) Relay, Rating 5A at 250V AC
- Indications : FAULT (UB/SPP/REVP, UV, OV): RED LED,RELAY ON: GREEN LED
- Relative Humidity : 10 to 95% RH
- Mounting :Panel mount
- Dimensions : 96(W) X 96(H) X 70(D) mm.
- Keys :
1) SET: SET key, Press to enter into SET Mode
2) INC: Upward Arrow key, Press to increment the set point.
3) DEC: Downward Arrow key, To Decrement the set point.

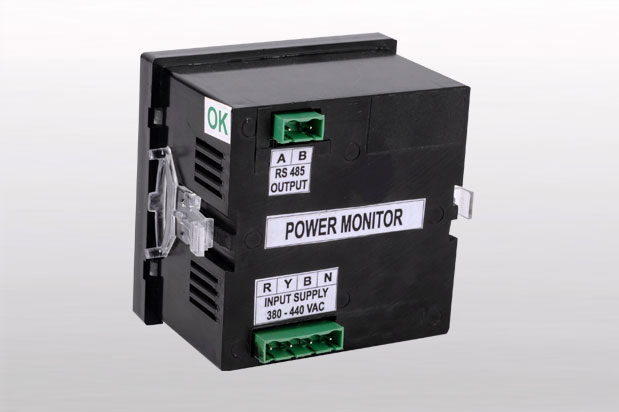

- Communication : Modbus (RS485)
- Microcontroller based technology.
- Protection against under voltage, over voltage, Single Phasing & Reverse Phasing
- All the set points settable by keys.
- Trip Delay for under voltage, over voltage, Unbalance is settable
- Reverse Phasing Protection can be bypass through settings.
- Indications for Under voltage, Over Voltage, SPP & Relay ON.
- Message Display for SPP, Reverse Phasing & Unbalance Faults.
- No separate auxiliary supply required.
- All Parameter monitor through Modbus using RS485.
