MICROCONTROLLERS with their inherent advantages are being increasingly used in the industry.With growing shortage and escalating cost of Electrical Energy, accurate monitoring of Air Conditioning parameters has become necessary.6A/C CONTROLLER is most useful for controlling A/Cs. This instrument is able to maintain Room Temperature with an accuracy of 0.1 Degree Celsius by automatic measurement of Room temperature and accordingly controlling A/C ON/OFF. It also protects Costly Air conditioner from Unhealthy condition's such as over load/under load etc. by automatically cutting off the Load.


    Modbus Compatibility with BMS over RS-485 Electrical Standard
  • Supply Voltage: 250 VAC +- 15 %
  • Output Contact Rating: 30 Amps at 250 V contacts.

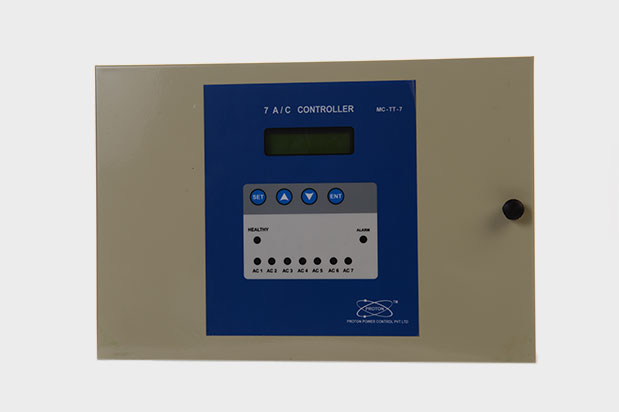

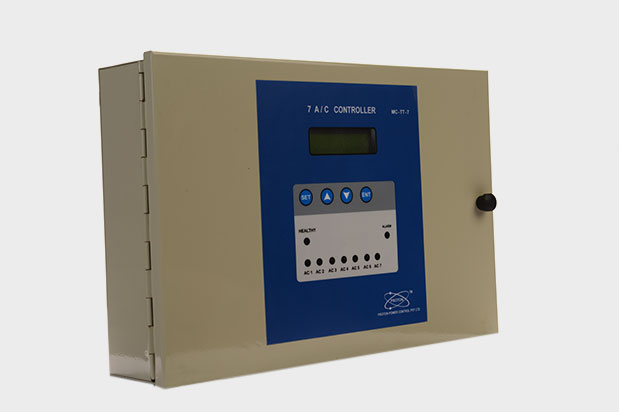

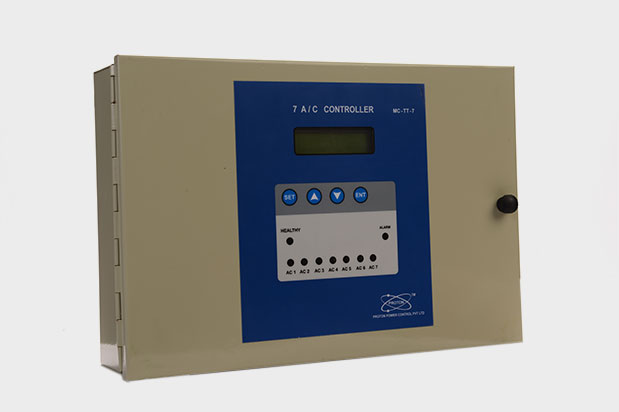

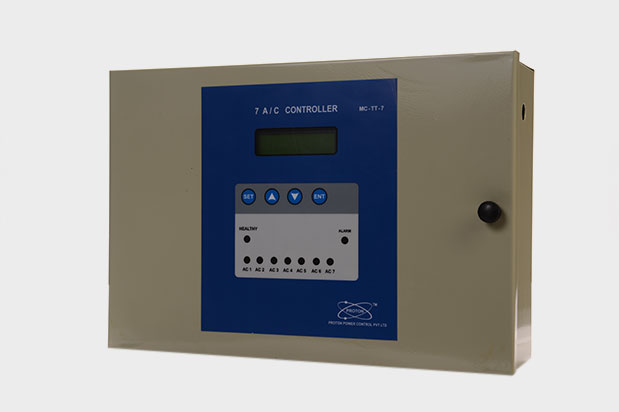

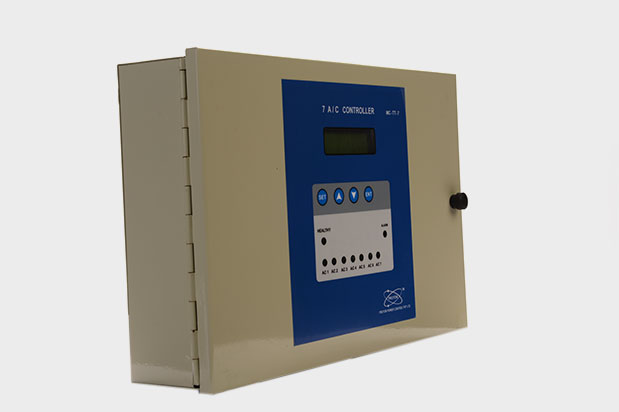

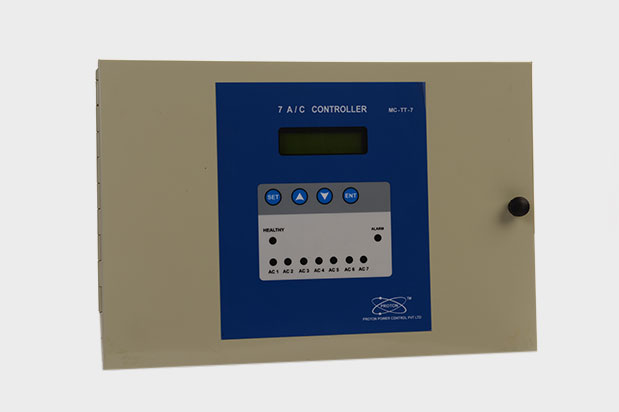

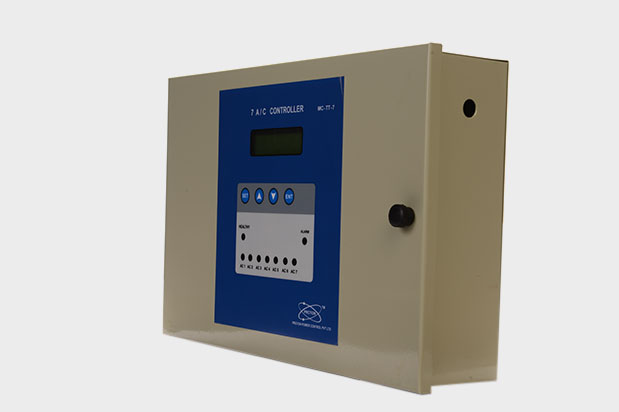

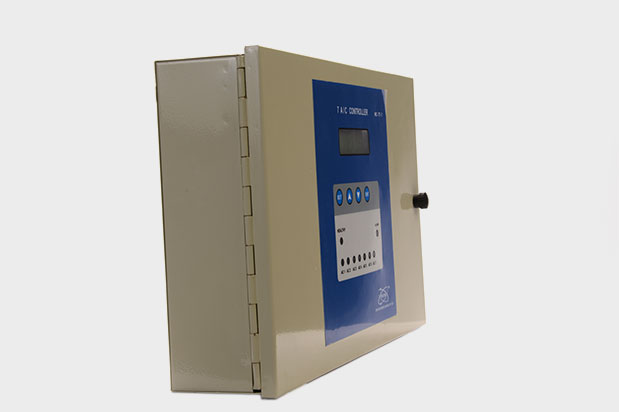

  • Front Panel: 16 char. x 2 lines LCD display with backlight.
    4 Key keypad for programming.
    A/C1 ON indication.
    A/C2 ON indication.
    A/C3 ON indication.
    A/C4 ON indication.
    A/C5 ON indication.
    A/C6 ON indication.
    A/C7 ON indication.
  • Healthy Indication by Green LED.
  • ALARM indication by Red LED.

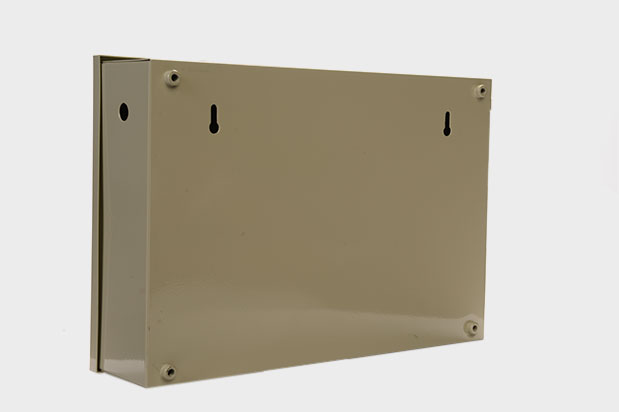

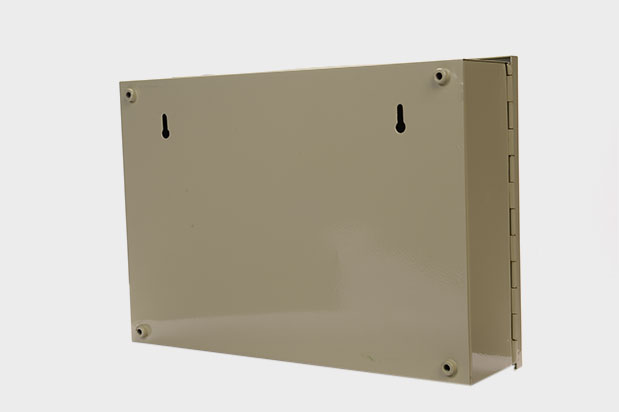

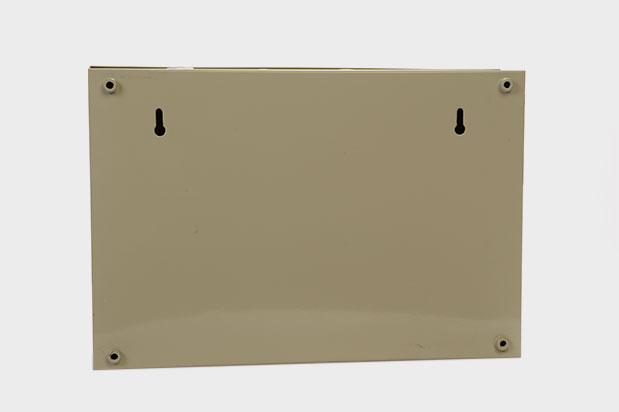

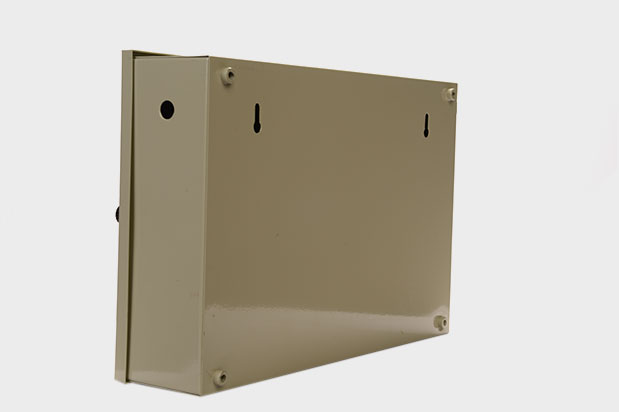

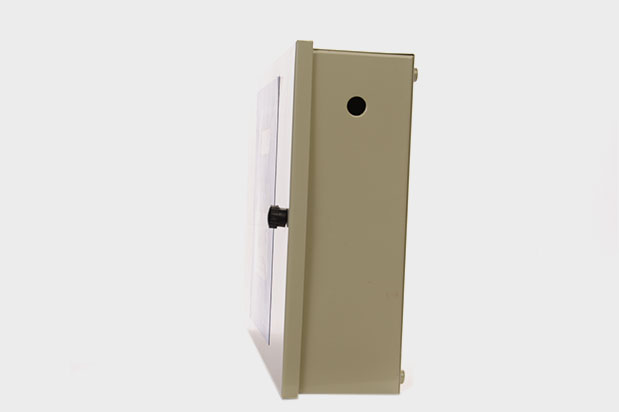

  • Dimensions: 330mm(W) X 220 mm (H) X 80 mm (O)
  • Sensing: High Pressure(HP)/ Low Pressure(LP) sensing for every AC.
  • Temperature sensing by precise Temp. Sensor.
  • AHU fault sensing.
  • Terminals:Separate O/Ps for each Compressor
  • HP/LP input for each A/C.(It should be potential free)
  • Alarms/ Protections: High Pressure/Low pressure Alarm.
  • High/low temperature alarm set point user settable.
  • AHU fault Alarm.
  • Fully programmable.
  • Complete protection for A/C from unhealthy condition.
  • All set points programmable from keypad.
  • Password protection for controller.
  • 16 char.lines LCD display with back light, on controller front panel.
  • Four key interface for onsite programming.
  • Automatic display of A/C parameters one by one in Run Mode.
  • Status & Healthy indication by green LED on front panel.
  • Alarm indication by red LED on front panel.
  • Room temperature sensing by precise sensor.
  • Separate outputs for each compressor.
  • Protection from High/Low Pressure.
  • No separate auxiliary supply required.
  • Auto reset for High/Low Pressure and High/Low Pressure alarm.
  • Direct display of actual room temperature
  • Automatic Timer mode operation if Room sensor fails.
  • AHU controlled from unhealthy conditions & indirectly compressor by AHU fault protection
