- Supply Voltage :
1) 90-270 AC/DC SMPS OR
2) 20V/60V DC Optional
3) Dual power supply 110V DC and 230V AC
4) Dual power supply 24V DC and 230V AC - Operation Sequence: Multiple sequence option with site selection facility.
- Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.
- No. of windows: 40 Window (4R x 10C)
- Window size: 30 mm(W) x 30 (H)mm
- No of LED`s per Window: Super bright 2 LED`s in Parallel.
- Power Consumption: 0.5 VA per window.
- Terminals: Suitable for 0.2 to 2.5 sq. Mm. Cable.
- Scan time: Less than 10 ms.
- Response Time: Less than 10 ms.
- Flash Rate: 60 Flash per min Fast Flashing 30 flash per min slow flashing
- Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
- Output Connection: Remote TEST, SILENT, ACCEPT,RESET.
- Output Relay Contacts: 2 No`s potential free, Non trip group & trip group. (Annunciator fail Optional.)
- Enclosure: ABS FRP with high strength.
- Output Contact Rating: 7 amps at 230 VAC Resistive.
- Noise Immunity: 2KV as per IEC 61000-4-12.
- Impulse Tests: 5KV as per IEC 60255 -5.
- Environmental Tests: As per IS 9000.
- Max. Ambient Temp: 0-60 Deg C.
- Humidity: 95% R.H.
- Window Colour: Red, Yellow, Amber & white.
- Facia Type: Printed on Photo film replaceable from front
- Cutout size: 355 mm(W) x 138) mm(H).
- Over all Size: 365 mm(W) x 144 mm(H) x 195 mm(D).
- Based on latest single chip micro-processor technology Sleek, Compact design for reliable and accurate operation.
- Fast response time.
- Models available from 4 to 64 windows.
- Field selectable operational sequences.
- Incorporates a group of super bright LED's instead of twin filament lamps for unlimited life at very less power consumption.
- Actuated through potential free fault input contacts.
- Fault input contacts NO/NC site selectable by means of DIP switches.
- Opto-isolated all fault inputs, immune to noise disturbances.
- Provision for external audible (Bell or Hooter) through potential free relay output contact.
- All models are available with built-in feather touch push buttons for Test, Mute, Accept and Reset operations.
- Test facility checks flashing, Mute, Accept and Reset operations.
- Specially designed power supply for high noise immunity, wide input variations and have built-in transient protection.
- The extensive protection provided to safeguards all I.C.'s and components from failure, thereby providing complete reliability.

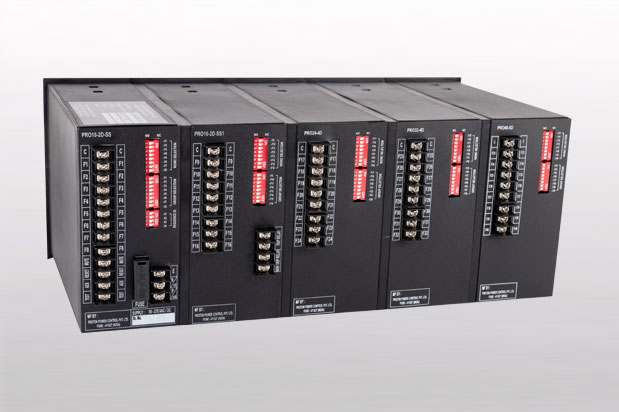

- All cards interconnected with plug-in polarised connectors for easy servicing.
- ABS FRP enclosure with high strength.
- Designed to give an economic, 'No Frills' alarm annunciator system that is both easy to install, commission and maintain.
- Type tested for noise, impulse and functional tests as per various standards.
- Site selectable facility for grouping of trip and non-trip faults or trip and alarm faults for visual and audio discrimination through two separate output relay contacts.
- Multi colored inscription plate for easy differentiation of trip and non-trip fault annunciations.
- Extra relay output contact per channel for repeat annunciation.
- LIVE fault input contacts. (AC or DC)
- Provision for dual (AC & DC) power supply with automatic changeover with AC fail or DC fail.
- Communication port with MODBUS RS-485 RTU protocol.
- In Unmanned mode - faults will not be displayed ON window & will be stored in memory.
- In Manned mode- Whatever faults occurred in unmanned mode will be displayed.
- Power fail memory retention - At the time of power fail starts of all windows will be saved in memory. When power is resumed all faults will be displayed.
