- Supply Voltage :
1) 90-270 AC/DC SMPS OR
2) 20V/60V DC Optional
3) Dual power supply 110V DC and 230V AC
4) Dual power supply 24V DC and 230V AC - Operation Sequence: Multiple sequence option with site selection facility.
- Push Button Controls: On board Test, Silence(optional),Accept, Reset buttons.

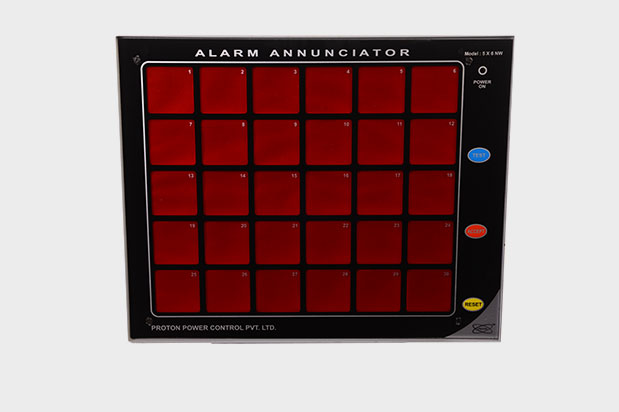

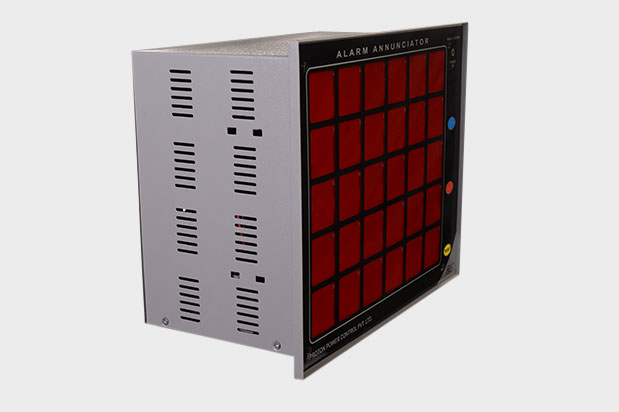

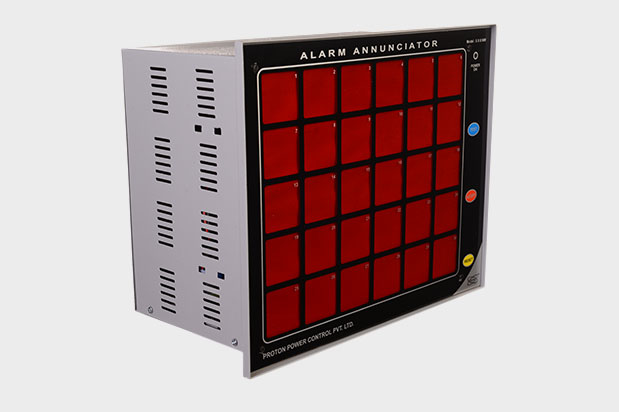

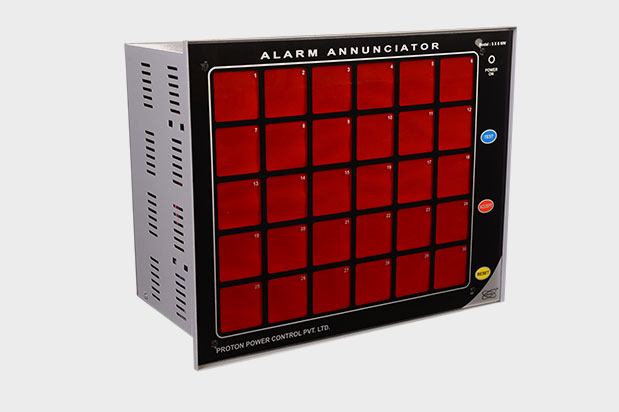

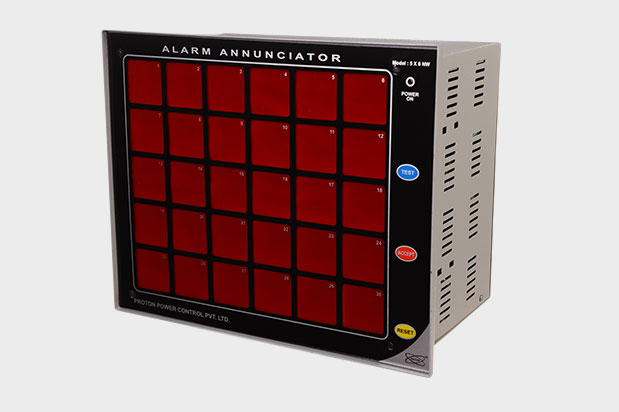

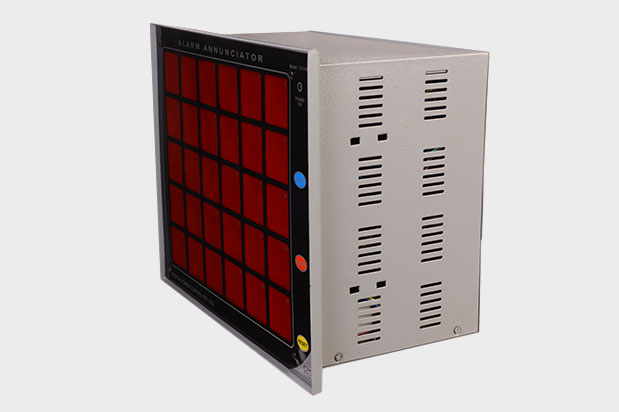

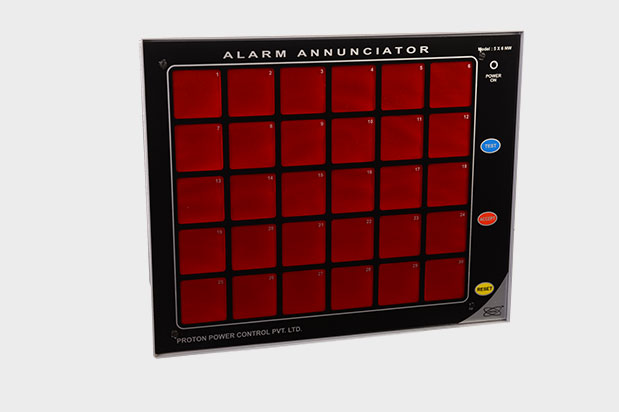

- No. of windows: 30 Window (5R x 6C).
- Window size: 40 x 40 mm.
- No of LED`s per Window: Super bright 4 LED`s in Parallel.
- Power Consumption: 0.8 VA per window.

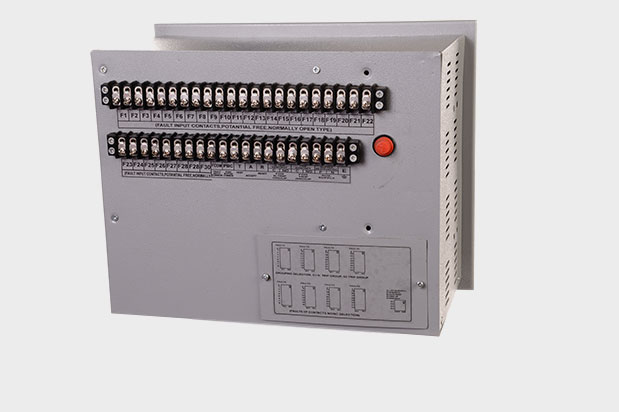

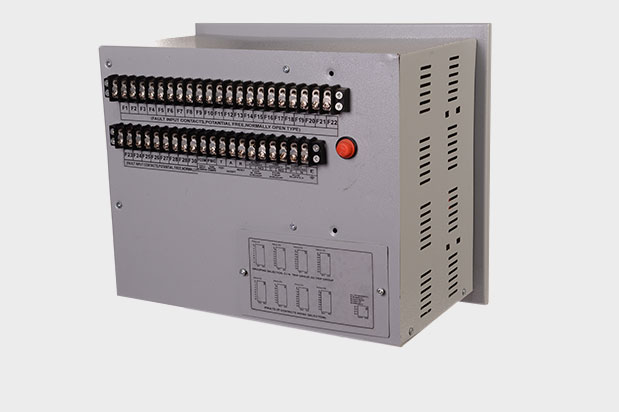

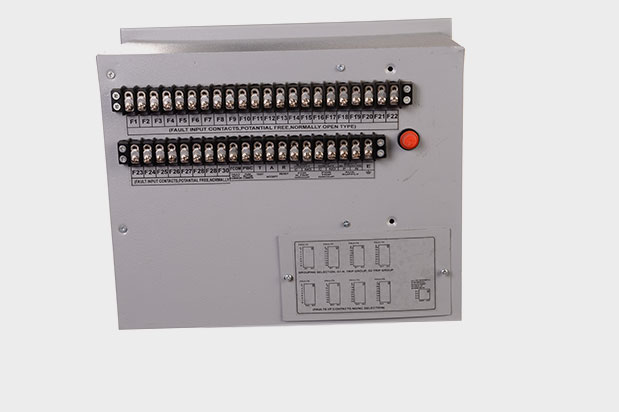

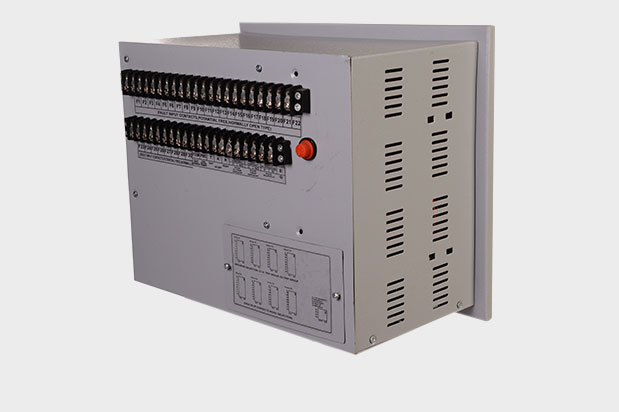

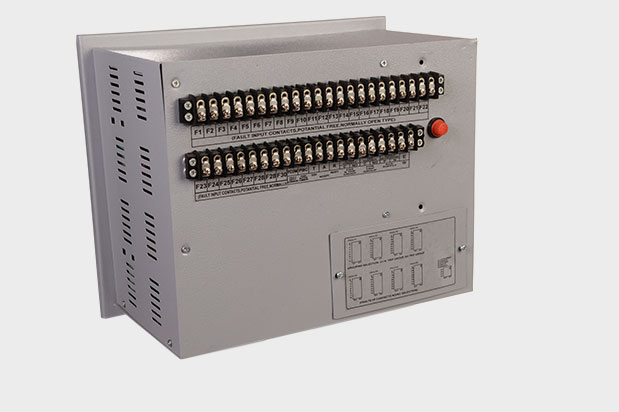

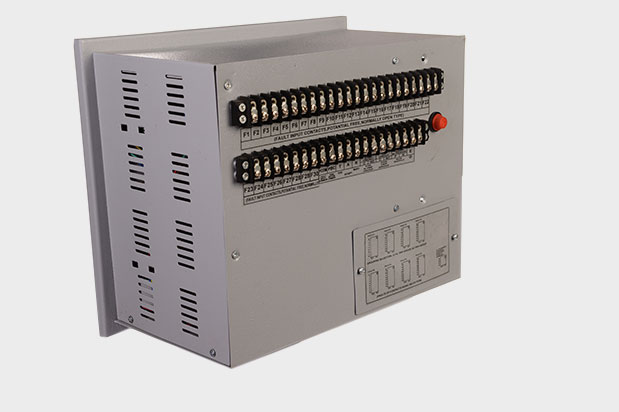

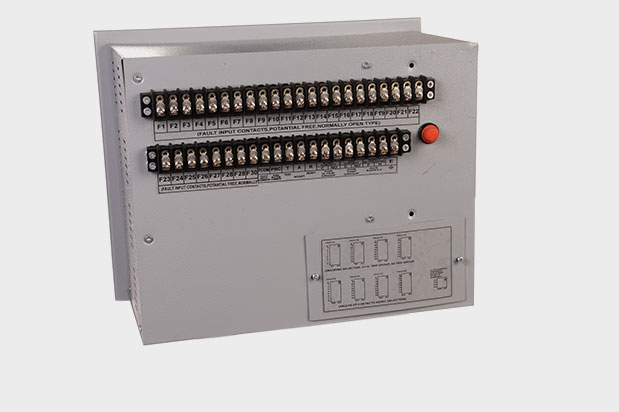

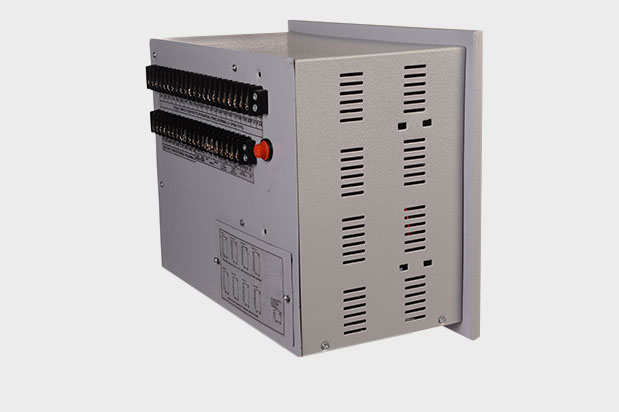

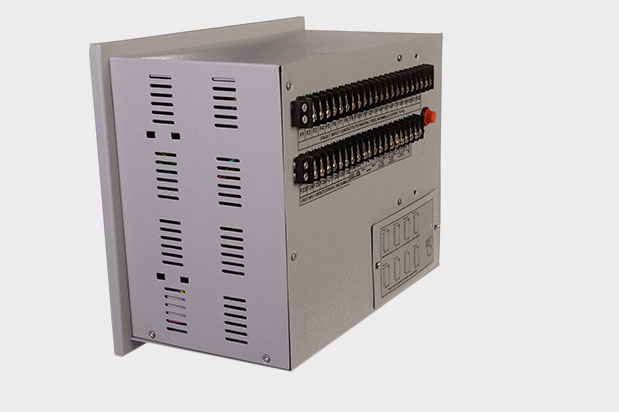

- Terminals: Suitable for 0.2 to 2.5 sq. Mm. Cable.
- Scan time: Less than 10 ms.
- Response Time: Less than 10 ms.
- Flash Rate: 60 Flash per min Fast Flashing 30 flash per min slow flashing
- Fault Input Contacts: Potential free contact needed. (LIVE Input Fault Contact can be Optional ).
- Output Connection: Remote TEST, SILENT, ACCEPT,RESET.
- Output Relay Contacts: 2 No`s potential free, Non trip group & trip group. (Annunciator fail Optional.)

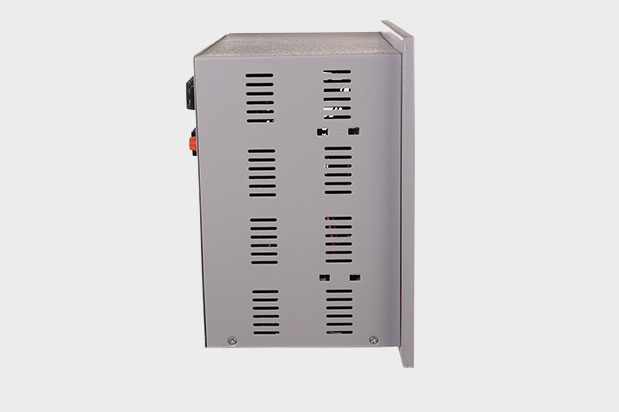

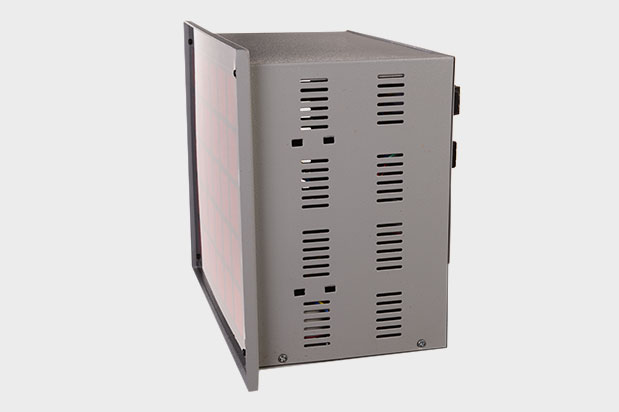

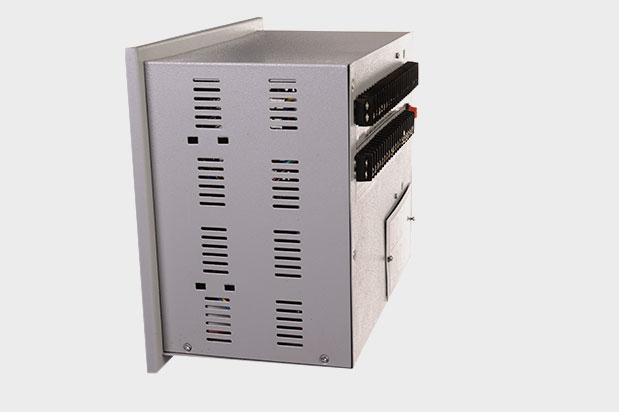

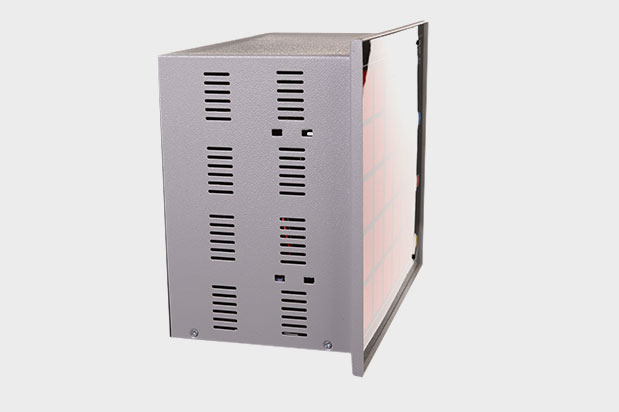

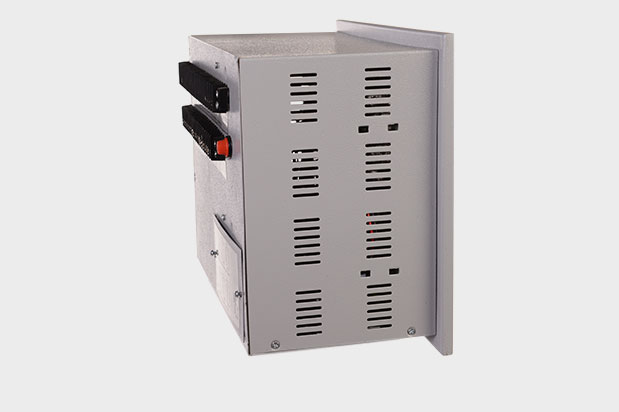

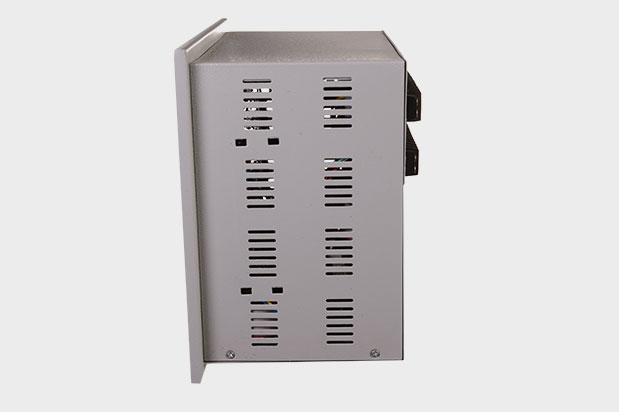

- Enclosure: M.S. Enclosure with high strength.
- Output Contact Rating: 7 amps at 230 VAC Resistive.
- Noise Immunity: 2KV as per IEC 61000-4-12.
- Impulse Tests: 5KV as per IEC 60255 -5.
- Environmental Tests: As per IS 9000.
- Max. Ambient Temp: 0-60 Deg C.
- Humidity: 95% R.H.
- Window Colour: Red, Yellow, Green, Blue, Amber & white.
- Facia Type: Printed on Photo film replaceable from front(optional)
- Cutout size: 278(W) x 220(H) mm.
- Over all Size: 300(W) x 240(H) x 160(D) mm.
- Based on latest single chip micro-processor technology Sleek, Compact design for reliable and accurate operation.
- Fast response time.
- Models available from 4 to 64 windows.
- Field selectable operational sequences.
- Incorporates a group of super bright LED's instead of twin filament lamps for unlimited life at very less power consumption.
- Actuated through potential free fault input contacts.
- Fault input contacts NO/NC site selectable by means of DIP switches.
- Opto-isolated all fault inputs, immune to noise disturbances.
- Provision for external audible (Bell or Hooter) through potential free relay output contact.
- All models are available with built-in feather touch push buttons for Test, Mute, Accept and Reset operations.
- Test facility checks flashing, Mute, Accept and Reset operations.
- Specially designed power supply for high noise immunity, wide input variations and have built-in transient protection.
- The extensive protection provided to safeguards all I.C.'s and components from failure, thereby providing complete reliability.
- All cards interconnected with plug-in polarised connectors for easy servicing.
- ABS FRP enclosure with high strength.
- Designed to give an economic, 'No Frills' alarm annunciator system that is both easy to install, commission and maintain.
- Type tested for noise, impulse and functional tests as per various standards.
- Site selectable facility for grouping of trip and non-trip faults or trip and alarm faults for visual and audio discrimination through two separate output relay contacts.
- Multi-colored inscription plate for easy differentiation of Trip and Non-Trip fault annunciations. Site selectable facility for grouping of Trip and Non-Trip faults or Trip and Alarm faults for visual and audio discrimination thro'
- two separate output relay contacts.
- Extra relay output contact per channel for repeat annunciation.
- Actuated thro' LIVE fault input contacts. (AC or DC voltage directly can be given.)
- Provision for Dual (AC & DC) power supply with automatic changeover with A.C. fail or D.C. fail annunciation
- Computer interface with MODBUS RS-485 RTU protocol.
- Output connections for remote Test, Silent, Accept and Reset operations
- Partly POTENTIAL FREE and partly LIVE fault input contacts can be given in one single unit
