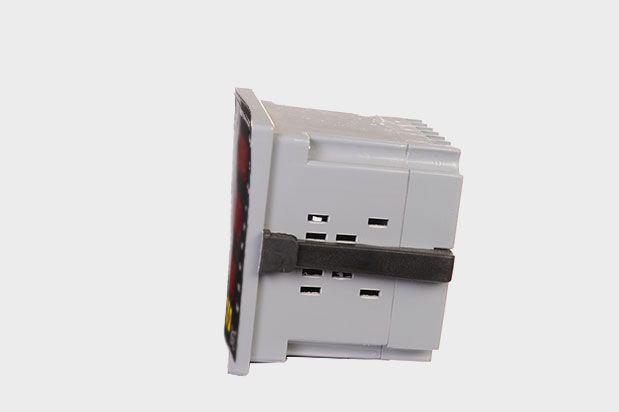

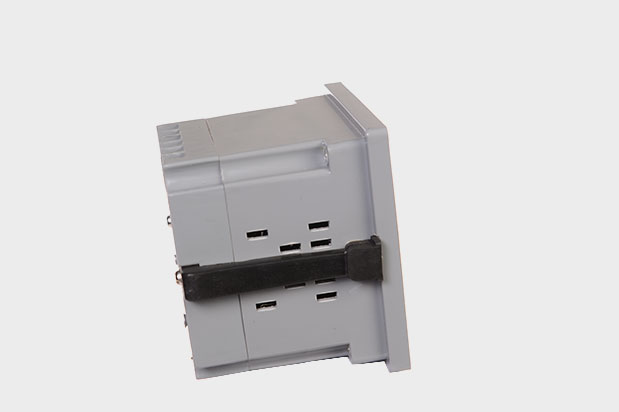

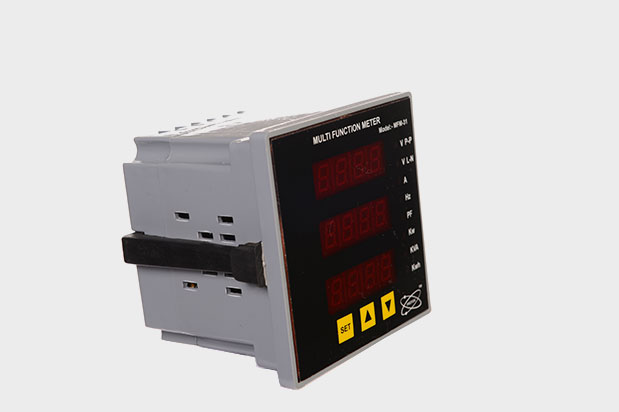

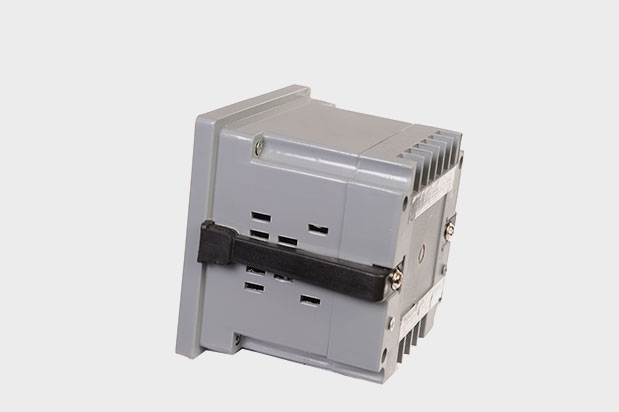

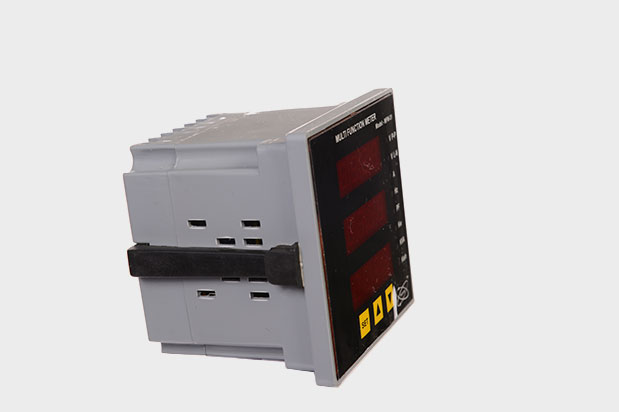

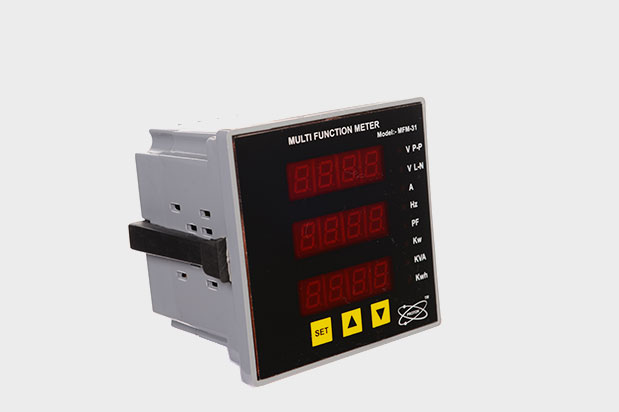

Multi Function Meter MODEL : MFM -31

Temperature Controllers, Temperature PID Controllers, Manufacturer, Supplier, Exporter, Proton Power Control, Pune, Maharashtra, India

Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter
Multi Function Meter

Monitoring of 3 Phase devices showing R-Y, Y-B, B-R voltages, P-N voltage of each phase, current on 3 Phase, 3 phase Frequencies and KWH parameters. Scrolling display parameter indication by LED. On site selection of CT ratio to add or delete any CT ratio multiple of 5.

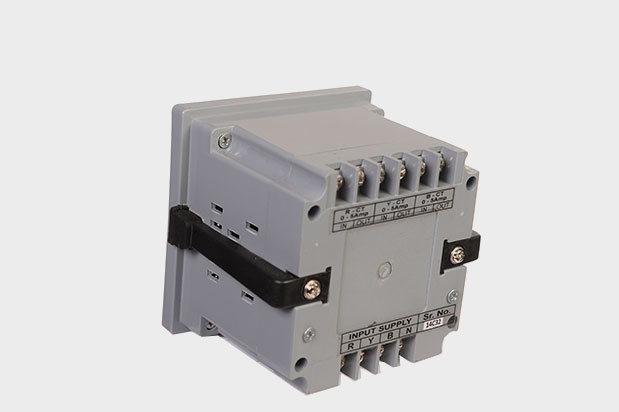

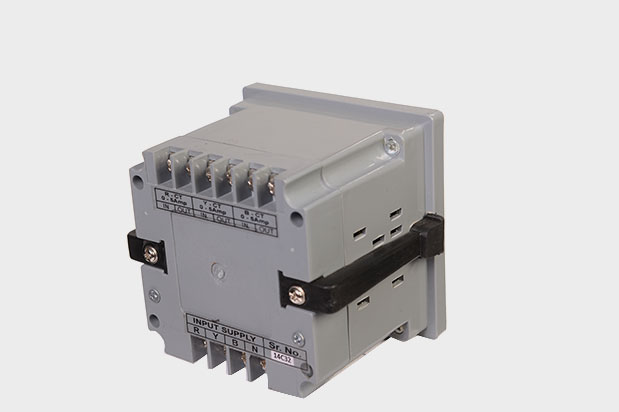

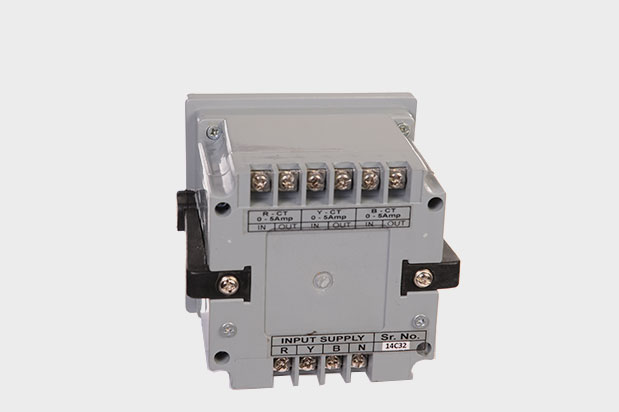

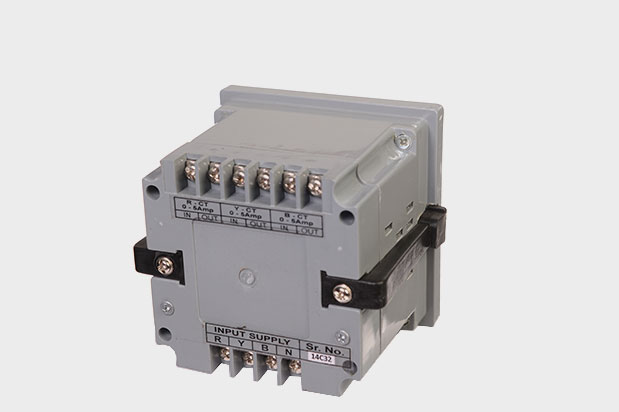

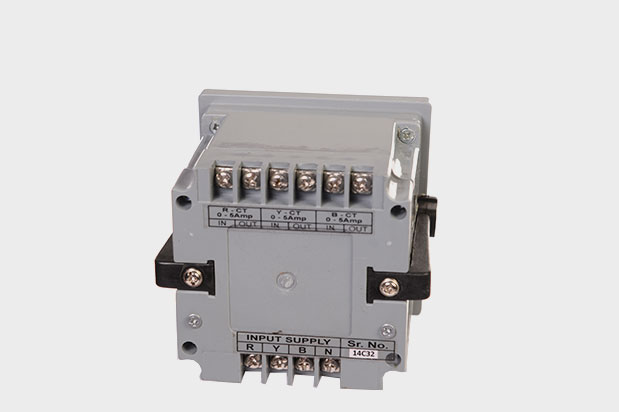

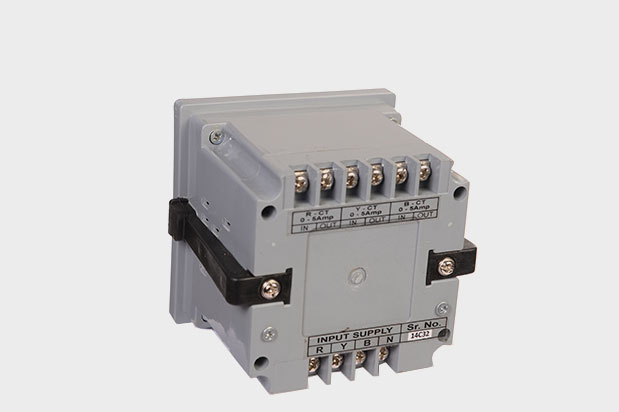

  • Supply : - 3 Phase 415 VAC, 50 Hz (R, Y, B & N) (No auxiliary supply).
  • Input volt Range : 200 V to 500 V.
  • Input Currant Range : 00.0 A to 5.00 A.
  • Input Freq Range : 40.00 Hz to 60.00 Hz.
  • Resolution:
    Voltage - 0.1 V Current - 0.01 A
    Frequency - 0.01 Hz
    PF - 0.01
    KW, KWA, KWh
  • Working : DISPLAY
    VAF meter displays the parameters in following order
    1. Phase to Phase Voltage with 0.1 V resolution
    Phase to phase Voltage LED ON(V P-P) and show
    R-Y Voltage ---1 Row
    Y-B Voltage ---2 Row
    B-R Voltage ---3 Row
    2. Phase to Neutral Voltage with 0.1 V resolution Phase to neutral Voltage LED ON (V L-N) and show
    R-N Voltage ---1 Row
    Y-N Voltage ---2 Row
    B-N Voltage ---3 Row
    3. Current with 0.01 A resolution Current LED ON (A) and show
    R Phase current ---1 Row
    Y Phase current ---2 Row
    B Phase current ---3 Row
    4. Frequency with 0.01 Hz resolution Frequency LED ON (Hz) and show
    R Phase frequency ---1 Row
    Y Phase frequency ---2 Row
    B Phase frequency ---3 Row
    5. Power Factor with 0.01 resolution Power Factor LED ON (PF) and show
    R Phase Power Factor ---1 Row
    Y Phase Power Factor ---2 Row
    B Phase Power Factor ---3 Row
    6. KW
    KW LED ON (KW) and show
    R Phase KW ---1 Row
    Y Phase KW ---2 Row
    B Phase KW ---3 Row
    7. KVA
    KVA LED ON (KVA) and show
    R Phase KVA ---1 Row
    Y Phase KVA ---2 Row
    B Phase KVA ---3 Row
    8. KWH
    KWH LED ON (KWH) and show
    KWH ---1-3 Row
  • SET MODE : To enter the Set mode press SET key.
    1. Enter password. Default password for CT Ratio = 5 and Reset KWH =15.
    2. After correct password enter press SET key to view and edit parameters.
    3. Editing parameters are CT Ratio, CT ADD, CT DEL and reset KWH.
    4. While editing in set mode if no key is pressed, the set mode will exit automatically and go into scroll mode.
    5. In the scroll mode display can be display RY, Y-B, B-R P-N voltages, currents, frequencies, Power factor, KW, KWA, KWH indication by respective LED.
    6. Parameters can be initialized with default values by press INC key.
    7. In the scroll mode display can be display R-Y, Y-B, B-R P-N voltages, currents and frequencies indication by respective LED.
    8. Parameters can be initialized with default values by press INC key.
  • PF - 0.01
  • KW , KWA , KWh

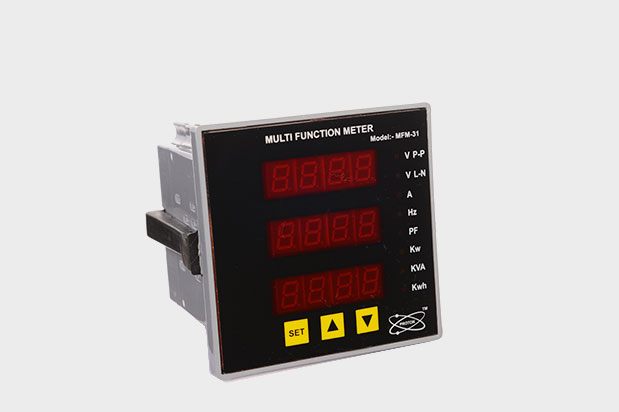

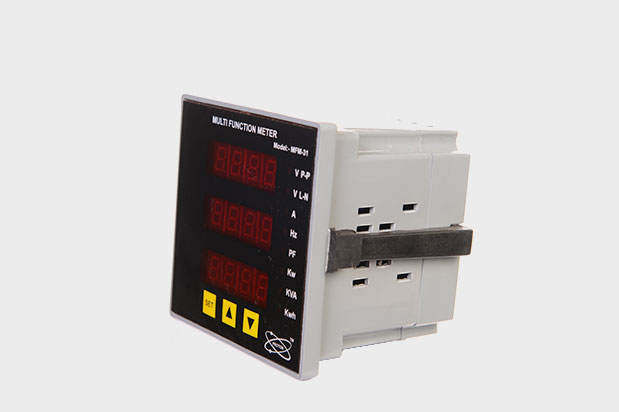

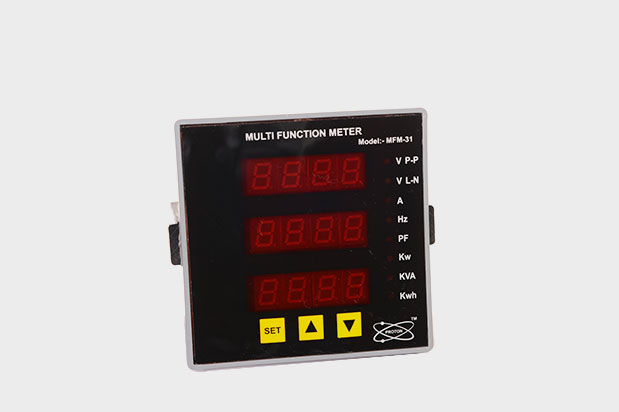

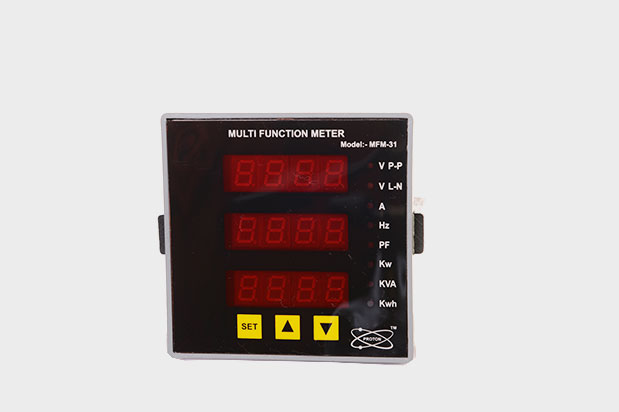

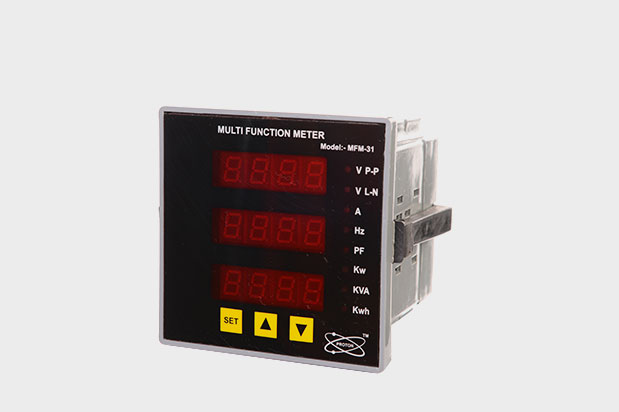

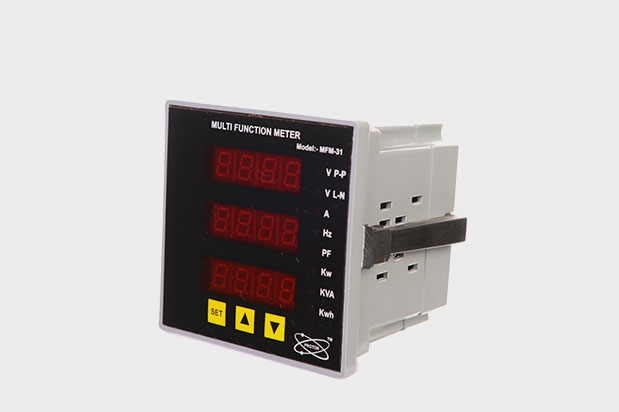

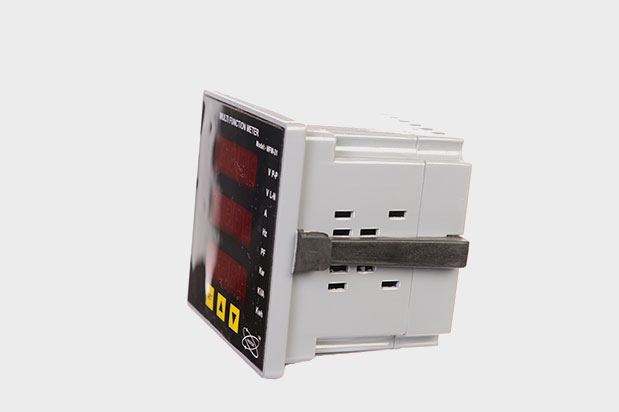

  • Display: 3 x 4 Digit bright RED 7 segment LED
  • Cutout : 92 mm X 92 mm

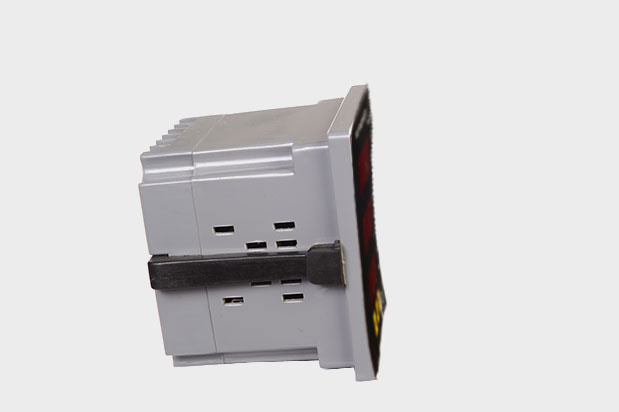

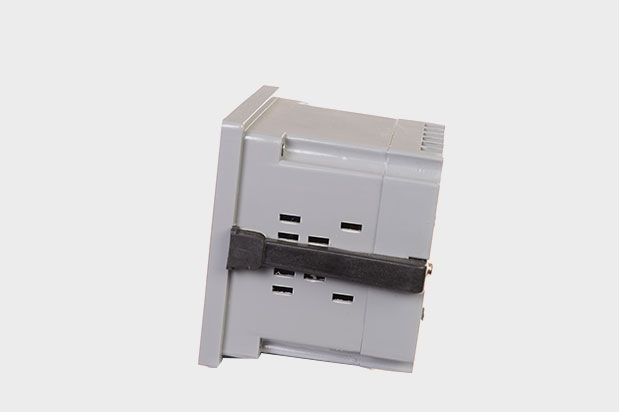

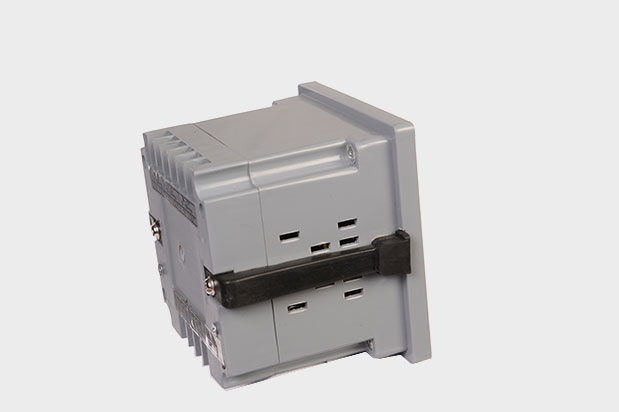

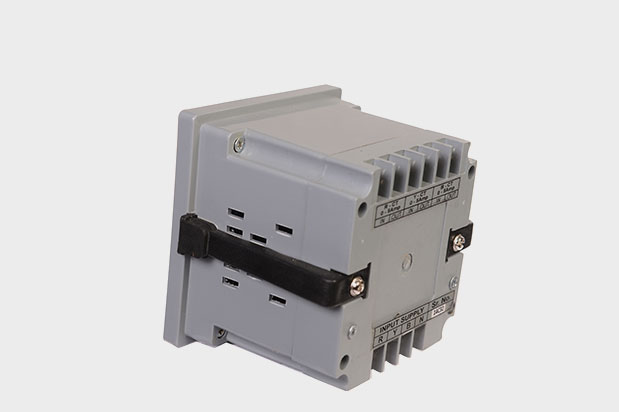

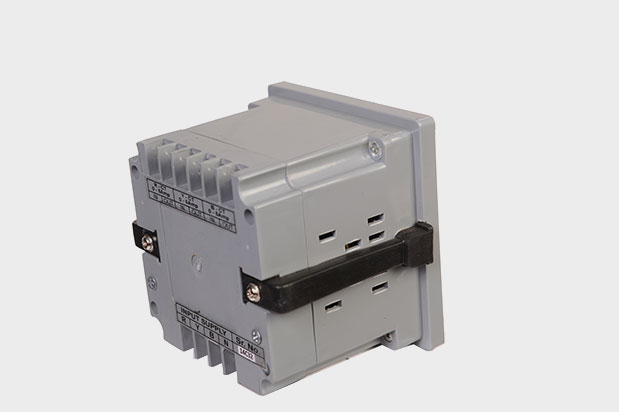

  • Dimension : 96 (W)mm X 96(H) mm X 80 (D) mm
