Spacemaker
MODEL: Acc-05-09 (1P) , Acc-10-02 (3P)


Compatible for Single Phase and Three Phase Systems.

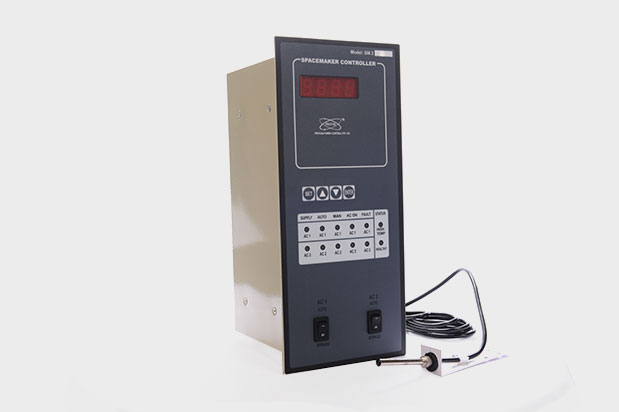

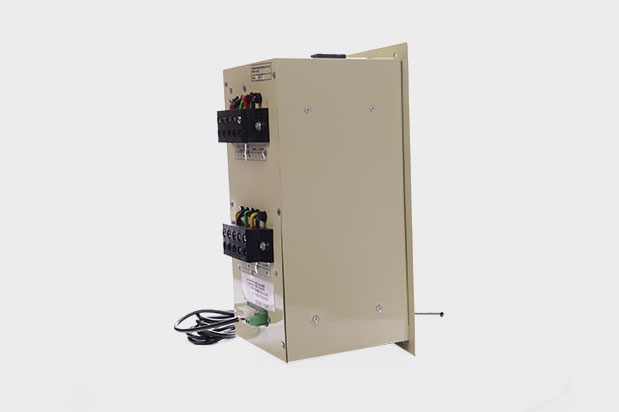

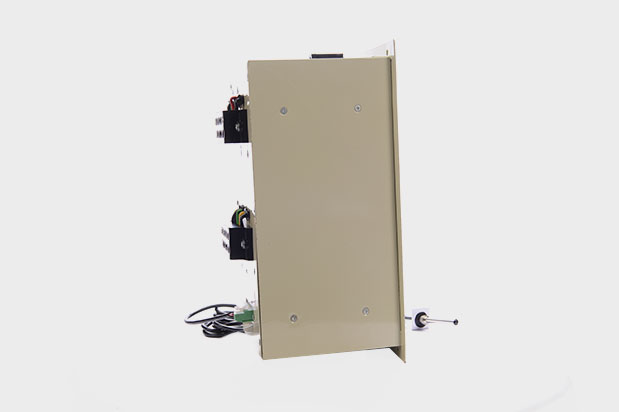

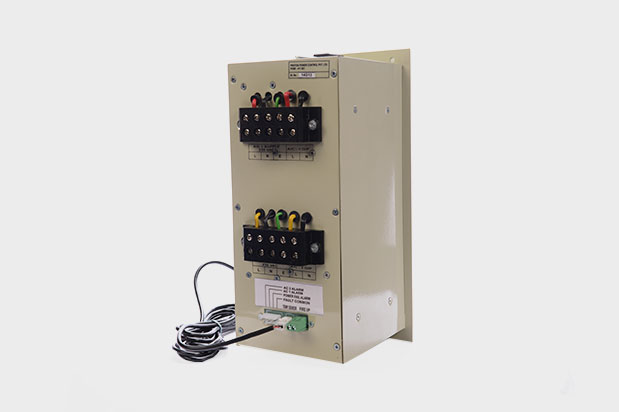

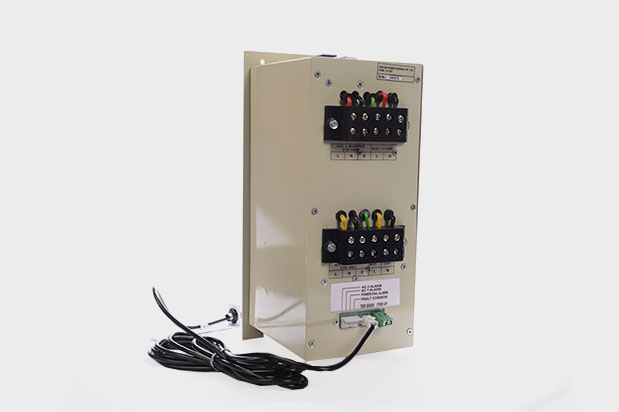

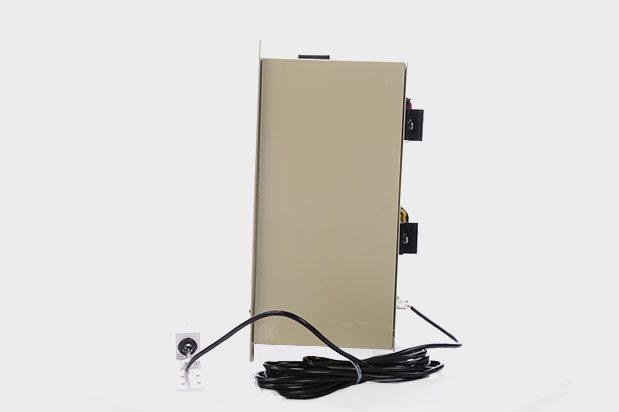

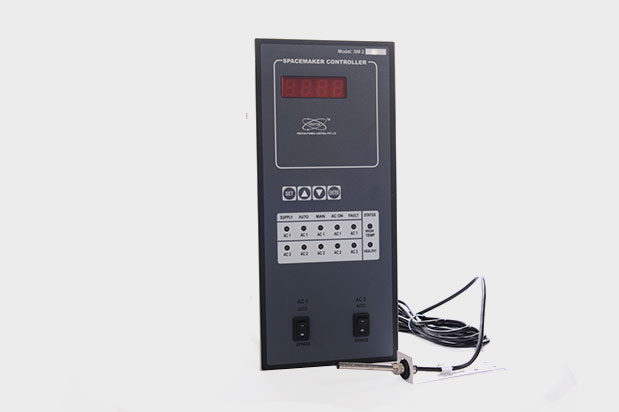

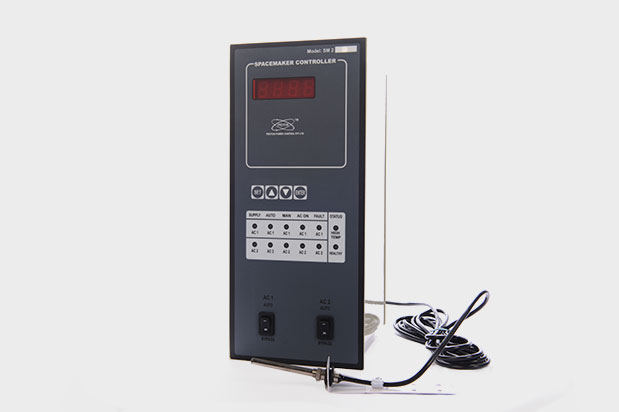

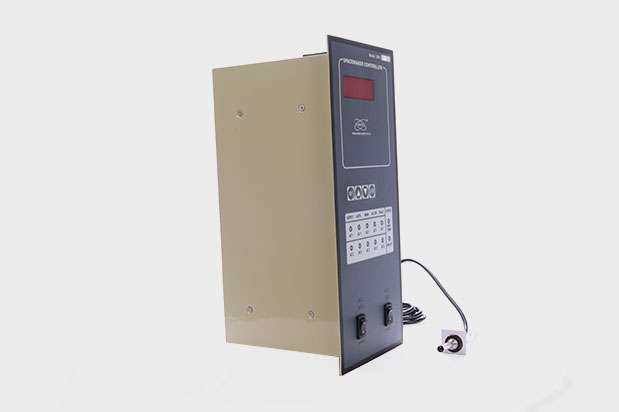

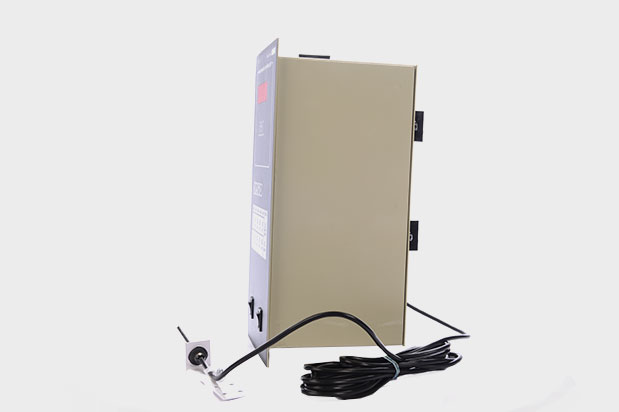

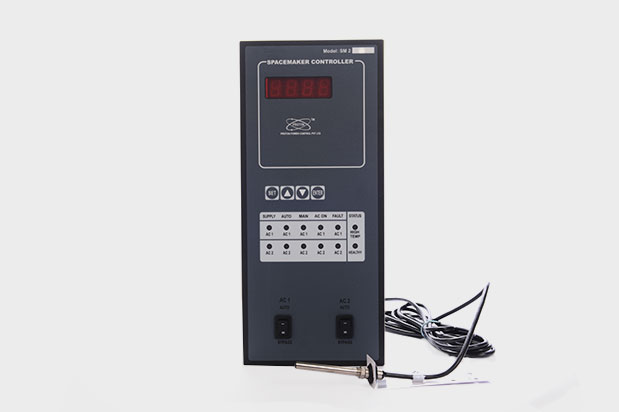

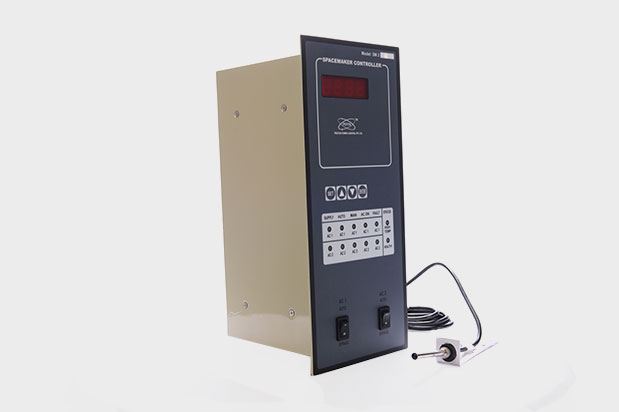

Image shown is for Single Phase(1P)
This cutting edge airconditioning system Controller is specially designed for Unmanned Telecom Shelters.
Spacemaker comes to you with unique safety features, lower power consumption and lower operating costs.
Micro controller Based technology to protect your Air Conditioning unit against Unhealthy Conditions.
Idea is to utilise equal run time for all Compressors with protection. Power saving is also one of the criteria to use this controller.
Application areas are Server rooms, Malls, Laboratories, Pharmaceutical companies, mobile shelters , etc.

  • For Acc-05-09 (1P) Single Phase

  • Supply Voltage: 230 V AC, 50 Hz  15% separate for each A/C.
  • Power Contact Rating: 30 A at 230 V AC for Compressor Outputs Alarm Contact rating 5 A at 250 V AC for Alarm Potential Free Outputs(C, N ,O).
  • Temperature Sensor: Thermistor Sensor NTC 10K@25C Metal body with clamp. Sensor Cable Length: 2.75 meters.
  • Temperature Sensing Range:0.0C to 55.0 C
  • Resolution: 1V for Voltage, 0.1 A for Current & 0.1C for Temperature.
  • Auto/ Controller Bypass Switch: To bypass the controller i.e. A/C1 & A/C2 will remain ON continuously if both the switches are in ON Condition
  • Indications:
    1] Supply ON for A/C1 & A/C2. Colour: Yellow
    2] Auto mode for A/C1 & A/C2 Colour: Green.
    3] Manual Mode for A/C1 & A/C2 Colour: Red.
    4] A/C ON for A/C1 & A/C2 Colour: Green.
    5] Fault for A/C1 & A/C2 Colour: Red.
    6] Room Temperature High: Colour: Red.
    7] Healthy: Colour: Green.

  • For Acc-10-02 (3P) Three Phase

  • Technical Specifications:
    1] Supply Voltage : 3 Phase 415 V AC, 50 Hz +/- 15% separate for each A/C.
    2] Contact Rating: 9 A, 3 Phase contactor for Compressor Live Outputs
        and 5 A at 250 V AC for Alarm Potential Free Outputs (C,N/O)
    3] Temperature Sensor: Thermistor Sensor NTC 10K@25 C Metal body with clamp.
       Sensor Cable Length: 2.75 meters
    4] Temperature Sensing Range: 0.0 C to 55.0 C
    5] Resolution : 1V for Voltage, 0.1 A for Current & 0.1 C for temperature.
    6]Auto/Controller Bypass Switch: To bypass the controller i.e. A/C1 & A/C2 will
        remain ON continuously if both the switches are in ON condition.
    7] Indications:
       a] Supply ON for A/C1 & A/C2. Colour: Yellow
       b] Auto Mode for A/C1 & A/C2 Colour: Green
       c] Manual Mode for A/C1 & A/C2 Colour: Red
       d] AC ON for A/C1 & A/C2 Colour: Green
       e] Fault for for A/C1 & A/C2 Colour: Red
       f] Room High Colour: Red
       g] Healthy Colour: Green
    8] Keys: 4 key keypad for settings.
       a] SET Key : To enter into SET Mode/To view the next set point
       b] Up Arrow Key : To increment the set point/To view next menu/To view next setpoint in VEW menu.
       c] Down Arrow Key: To decrement the set point/To view previous menu/To view previous set point in VEW menu.
       d] ENTER Key: To come out of SET mode/To enter into menu/To accept the password
    9] Mounting : Flush mounting



  • Controls two air conditioners.
  • Separate Phase Supply for each A/C.
  • Bright Red 4 Digit LED Display
  • Accurate Temperature sensing by precise temperature sensor.
  • Time Sharing for Compressors to share load equally
  • Voltage & Current protections for each compressor.
  • Separate alarm relay contacts for AC Fail.
  • Fire protection by Digital Input.
  • Hour counters for Compressor ON Period to check its reliability.
  • Display of all the A/C parameters & fault messages continuously in a scrolling manner.
  • Display Hold Feature by using ENTER Key. Press it again to release the hold.
  • Various set points are settable through the following different Menu categories: a] VEW b] SET c] RESET
  • Password Protection for all the settings
  • Sensor Fail Mode to keep ON & OFF cycle of A/C through sensor fail ON/OFF time settings
  • Auto (with all protections)/manual (without protection) Modes .
  • Controller Bypass feature by provision of Switch on Front Panel .
  • LED Indications to observe the status .

  • N/A
